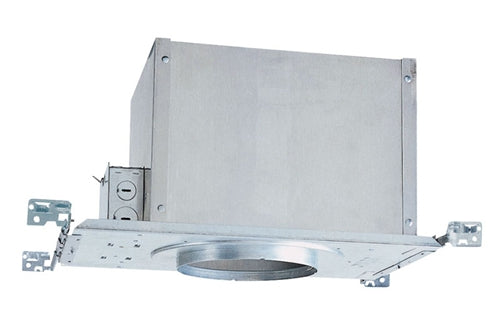

Juno Aculux IC64 Recessed Lighting 5-5/8 inch Line Voltage New Construction IC Open Aperture Adjustable Housing
Juno Aculux IC64 Recessed Lighting 5-5/8 inch Line Voltage New Construction IC Open Aperture Adjustable Housing
Ordering a large quantity?
Request a quote
View full details
description
Recessed adjustable PAR36 or AR111 luminaire with 5-5/8” angle-cut Alzak® cone aperture. Fixture has 50° visual cutoff to lamp and lamp image. Aiming and rotation locks. Sealed Air-Loc housing eliminates leak-paths to ensure maximum energy savings and comfort. Also controls plenum sound transmission and keeps dust and insects from entering living space. IC rated housing for use in direct contact with insulation.
One 50W PAR36 or AR111 lamp.
Screw terminal lamp Lead wires supplied with terminals.
White, Satin Chrome, or Classic Aged Bronze on steel Torsion spring retention for tight, secure fit to ceiling Beveled profile for clean ceiling interface without light leaks.
.050” aluminum angle cut reflector with clear, gold, black or haze finish 50° lamp and lamp image cut-off.
Optimized lamp beam optical alignment with trim opening to insure full light output with low aperture brightness at any aiming angle 361° rotation, 35° tilt Tooless locking for both rotation and tilt Off- vertical aiming marks to aid consistent aiming for multiple units Unit may be relamped without unlocking adjustments Matte black lamp housing to preserve dark aperture.
Premium low voltage thermally protected, high efficiency magnetic transformer Quiet operation and consistent light output regardless of variations in operating temperature Simple removal with electrical disconnect Serviceable from below ceiling.
May be dimmed using dimmers specifically designed for low voltage magnetic transformers; consult factory or dimmer manufacturer for additional information.
U.L. listed for direct contact with insulation, through branch wiring, damp locations and IP Meets Washington State Air Tight Requirements, 1995 CABO Model Energy Code Product thermally protected against improper use of lamps Union made CSA certified.
All reports are based on published industry procedures; field performance may differ from laboratory performance.
Real Nail 3 Bar Hangers Telescoping, patent-pending Real Nail 3 system permits quick placement of housing anywhere within 24” O.C. joists or suspended ceilings Integral T-bar notch and clip secures housing in suspended ceiling grid – no accessory clips required 24” expansion stop allows quick placement of fixture in standard grid spacing Bars scored in two locations for fast, clean breaking, allowing housing installation in tight applications Bars captive to mounting frame Edge-mounted for extra strength Captive bugle-headed ring shank nail for quick one step installation and easy removal with claw hammer for fixture relocation Quick-Loc slot and oversized locking set screw lock fixture in position Bar hanger foot contoured to align to bottom of construction joist Alternate mounting holes included.
Pre-wired junction box, U.L. listed/CSA certified for through-branch wiring, maximum 8 No. 12 AWG 90° C branch circuit conductors (4 in, 4 out) Junction box provided with removable access plates (5) 1⁄2” and (1) 3⁄4” knockouts, (4) Nonmetallic sheathed cable knock-outs with built-in strain reliefs and ground wire Knockouts equipped with pryout slots.
20-gauge die-formed galvanized steel plaster frame . 032” die-formed aluminum housing -
Rough-in section (junction box, mounting frame, housing assembly and bar hangers) fully assembled for ease of installation.
Download 635 Adjustable Baffled Aperture Trims SpecificationShare your knowledge of this product. Be the first to write a review »
