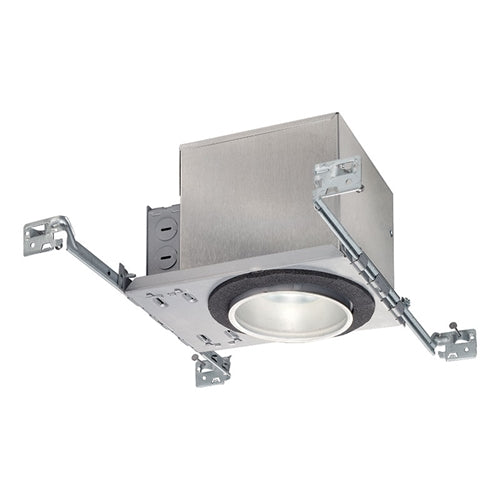

Juno Recessed Lighting IC91LEDG4-35K-U 4" LED IC Type New Construction Housing 900 Lumens, 3500K Color Temperature, Universal Driver 120-277V
Juno Recessed Lighting IC91LEDG4-35K-U 4" LED IC Type New Construction Housing 900 Lumens, 3500K Color Temperature, Universal Driver 120-277V
Regular price
Price:
$172.60
Regular price
Price:
Sale price
$172.60
Unit price
per
MODEL: Juno-IC91LEDG4-35K-U
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
free shiping
details >>
Ordering a large quantity?
Request a quote
When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.
description
PRODUCT DESCRIPTION
LED Light Engine
ORDERING INFORMATION
- Dedicated LED, Air-Loc sealed new construction housing with integral light engine

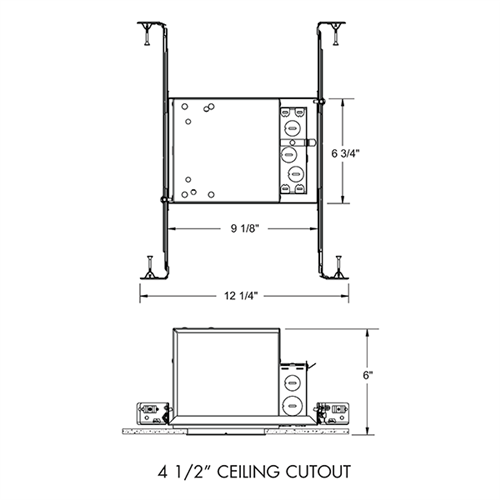

- Double wall, shallow housing construction allows for fit in 2 x 6 construction
- Can be completely covered with insulation
- Fully sealed housing stops infiltration and exfiltration of air, reducing heating and air cooling costs without the use of additional gaskets
- LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
- 5 year limited warranty on LED components.
LED Light Engine
- LED array attached to high purity aluminum, thermally conductive inner housing provides superior heat transfer to ensure long life of the LED
- Replaceable light engine mounts directly to inner housing assembly and incorporates the latest generation, high lumen output LED array
- LEDs are binned within a 3-step MacAdam Ellipse exceeding ENERGY STAR requirements for superior fixture to fixture color uniformity
- 2700K, 3000K, 3500K, or 4100K color temperatures available
- 90 CRI minimum.
- Compatible with wide selection of existing Juno trims
- See PDF spec for trim selection.
- Choice of dedicated 120 volt driver or universal voltage driver that accommodates input voltages from 120-277 volts AC at 50/60Hz
- Power factor > 0.9 at 120V input
- 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
- Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers
- For a list of compatible dimmers, click here
- Mounted inside housing for easy access from below ceiling.
- Rated for 50,000 hours at 70% lumen maintenance.
- ENERGY STAR Qualified when used with select trims
- Certified to the high efficacy requirements of California T24 with select trims
- UL listed for U.S. and Canada through-branch wiring, damp locations
- Union made
- UL and cUL.
- All reports are based on published industry procedures; field performance may differ from laboratory performance.
ORDERING INFORMATION
