Juno Recessed Lighting IC922LEDG4-27K-1 6" LED IC Type New Construction Housing 900 Lumens, 2700K Color Temperature, Dedicated Driver 120V

Juno Recessed Lighting IC922LEDG4-27K-1 6" LED IC Type New Construction Housing 900 Lumens, 2700K Color Temperature, Dedicated Driver 120V

Price: $112.24
Price: $112.24

MODEL: Juno-IC922LEDG4-27K-1

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote

When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.

View full details

description

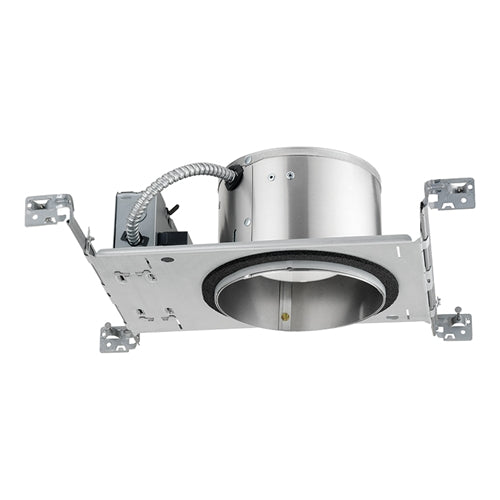

The Juno IC922LEDG4 6-inch downlight features a dedicated LED, new construction housing with integral light engine designed to provide 50,000 hours of life and be compatible with many standard Juno trims. The IC-rated fixture’s shallow housing can fit in a 2 x 6 construction and can be completely covered with insulation. The fixture is Air-Loc® sealed to stop infiltration and exfiltration of air, reducing heating and cooling costs.

  • ENERGY STAR® Qualified and certified to high efficacy requirements of California T24 when used with select trims. See specification sheet for details.
  • 2700K, 3000K, 3500K or 4100K color temperatures available, 90 CRI minimum
  • Over 900 lumens with select trims using fewer than 16W; nominal input wattage at 120V operation with dedicated 120V driver under stable operating conditions
  • LEDS binned within a three step MacAdam Ellipse exceeding ENERGY STAR® requirements for superior fixture to fixture uniformity
  • Computer-optimized reflector design with high-reflectance finish and a high-transmission diffusing lens conceals LEDs and produces uniform aperture luminance
  • Dedicated 120V driver, dimmable with forward or reverse phase, or universal voltage driver, 0-10V dimmer, for input voltages from 120-277V AC at 50-60Hz
  • Fully sealed Air-Loc® housing degrees
  • Real Nail® 3 bar hangers telescope with removable nail, breakaway bars, Quick-Loc slot, oversized set screw, and curved foot; can reposition bars 90 degrees
  • Shallow housing allows for fit in 2 x 6 construction
LED Light Engine
  • LED array integrated to thermally conductive housing provides uninterrupted heat transfer to ensure long life of the LED
  • Replaceable light engine mounts directly to housing and incorporates the latest generation, high lumen output LED array
  • LEDs are binned within a 3-step MacAdam Ellipse exceeding ENERGY STAR® requirements for superior fixture to fixture color uniformity
  • 2700K, 3000K, 3500K, or 4100K color temperatures available
  • 90 CRI minimum.
Optical System
  • Computer-optimized reflector design with high reflectance white finish coupled with a high transmission diffusing lens conceals the LEDs and produces uniform aperture luminance
  • Deep regression of lens produces a low glare, efficient system that produces 900 lumens typical with select trims
  • Wide flood distribution shipped as standard with optional optic accessories available and sold separately.
Aesthetic Trim Selections Compatible with wide selection of existing Juno trims.
Shadow free, knife edge design blends seamlessly into ceiling.
LED Driver
  • Choice of dedicated 120 volt driver or universal voltage driver that accommodates input voltages from 120-277 volts AC at 50/60Hz
  • Power factor > 0.9 at 120V input
  • 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
  • Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers
  • Mounted between the j-box and housing for easy access and cool operation.
Life Rated for 50,000 hours at 70% lumen maintenance.
Labels
  • ENERGY STAR® Qualified when used with select baffle and cone trims
  • Certified to the high efficacy requirements of California T24 with select trims
  • UL listed for U.S. and Canada through-branch wiring, damp locations
  • Union made
  • UL and cUL.
Housing Designed for use in IC (insulated ceiling) or non-IC construction.
Aluminum housing sealed for Air-Loc® compliance.
Housing is vertically adjustable to accommodate up to a 2” ceiling thickness.
Junction Box Pre-wired junction box provided with (5) 1⁄2” and (1) 3⁄4” knockouts, (4) knockouts for 12/2 or 14/2 NM cable and ground wire.
UL listed and cUL listed for through-branch wiring, maximum 8 #12 branch circuit conductors.
Junction box provided with removable access plates.
Knockouts equipped with pryout slots.
Quick connect electrical connectors supplied as standard for fast, secure installation.
Mounting Frame 22-gauge die-formed galvanized steel mounting frame.
Rough-in section (junction box, mounting frame, housing and bar hangers) fully assembled for ease of installation.
Real Nail 3 Bar Hangers Telescoping Real Nail 3® system permits quick placement of housing anywhere within 24” O.C. joists or suspended ceilings.
Includes removable nail for repositioning of fixture in wood joist construction.
Integral T-bar notch and clip for suspended ceilings.

Ordering Information
