Home > Juno Lighting > Juno Recessed Lighting IC928LED G4 09LM 35K 90CRI MVOLT ZT 6" Super Slope LED New Construction IC Type Recessed Housing, Universal Driver 120-277V, 900 Lumens, 3500K Color Temperature
Juno Recessed Lighting IC928LED G4 09LM 35K 90CRI MVOLT ZT 6" Super Slope LED New Construction IC Type Recessed Housing, Universal Driver 120-277V, 900 Lumens, 3500K Color Temperature
Juno Recessed Lighting IC928LED G4 09LM 35K 90CRI MVOLT ZT 6" Super Slope LED New Construction IC Type Recessed Housing, Universal Driver 120-277V, 900 Lumens, 3500K Color Temperature
Regular price
Price:
$253.48
Regular price
Price:
Sale price
$253.48
Unit price
per
MODEL: Juno-IC928LED-1429
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
free shiping
details >>
Ordering a large quantity?
Request a quote
When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.
description
PRODUCT DESCRIPTION
PRODUCT SPECIFICATIONS
Super Slope Pitch

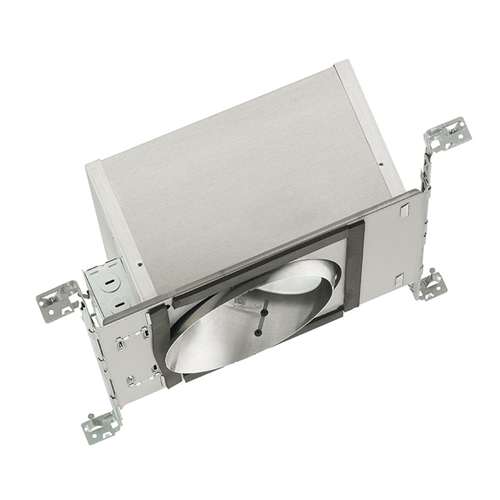

- Dedicated LED, Air-Loc sealed slope ceiling new construction housing with integral light engine
- IC rated construction housing can be completely covered with insulation
- Fully sealed housing stops infiltration and exfiltration of air, reducing heating and air cooling costs without the use of additional gaskets
- LED housing is designed to provide 50,000 hours of life and is compatible with standard Juno trims
- 5 year limited warranty on LED components.
PRODUCT SPECIFICATIONS
Super Slope Pitch
- 7/12 to 12/12 pitch (30? to 45?)
- Extruded heat sink and cast aluminum slider plate integrated directly with housing provides superior thermal management to ensure the long life of the LED
- Replaceable light engine mounts directly to slider plate and incorporates the latest generation, high lumen output LED array
- LEDs are binned within a 3-step MacAdam Ellipse exceeding ENERGY STAR requirements for superior fixture to fixture color uniformity
- 2700K, 3000K, 3500K, or 4100K color temperatures available
- 90 CRI minimum.
- Compatible with a selection of existing Juno trims
- See PDF spec for trim selection.
- Choice of dedicated 120 volt driver or universal voltage driver that accommodates input voltages from 120-277 volts AC at 50-60Hz
- Power factor > 0.9 at 120V input
- 120 volt only driver dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
- Universal voltage driver is dimmable with the use of most 0-10V wall dimmers
- For a list of compatible dimmers, click here
- Mounted inside housing on a removable J-box cover for ease of maintenance.
- Rated for 50,000 hours at 70% lumen maintenance.
- ENERGY STAR Qualified when used with select baffle and cone trims
- Certified to high efficacy requirements of California T24 with select trims
- UL listed for U.S. and Canada through-branch wiring, damp locations
- Union made
- UL and cUL listed.
- All reports are based on published industry procedures; field performance may differ from laboratory performance.
