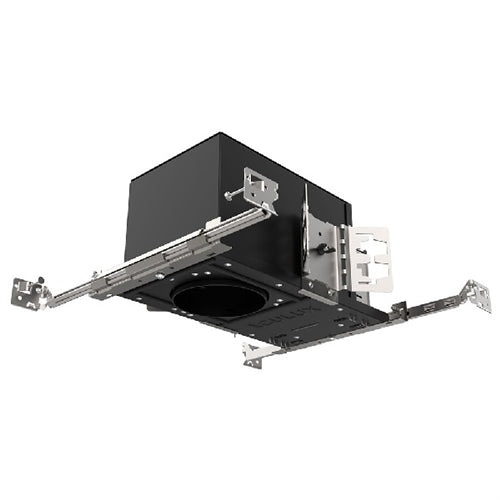

Juno Aculux INIT3 D 08LM WDIM HALR 90CRI 50D FPC 120 ICAT Recessed Lighting 3" IC New Construction Housing, 800 Lumens, Warm Dim 3000K-1800K Color Temperature, 90 CRI, 50 Degree Beam, 120V

PRODUCT DESCRIPTION
Aculux Initia 3-inch LED is an affordable precision recessed luminaire offering elegance and performance in 4 lumen packages (ranging from 400-1500 delivered lumens). Available in both ICAT and non-ICAT configurations, this downlight features field-interchangeable optics available in 4 distributions (18 degree - 50 degree) and offers superb 45 degree visual cut-off for a truly quiet ceiling. Aculux initia fixed downlight is compatible with initia downlight and wall wash trims which provide excellent below ceiling aesthetics that coordinate with the AX3 family.

PRODUCT SPECIFICATIONS
FIELD INTERCHANGEABLE LED LIGHT ENGINE

• <2SDCM Binning
• 2700K | 3000K | 3500K | 4000K CCT
• 80+ CRI available for all CCTs
• 90+ CRI available for 2700K, 3000K, 3500K
• WarmDim mimics halogen, with CCT shifting from 3000K to 1800K when dimmed.
• Future proof and easy to maintain - serviceable from below the ceiling

OPTICAL SYSTEM

• 45 degree visual cutoff to source and source image
• Field interchangeable TIR optics from 18 degree FWHM to 50 degree FWHM provide smooth, striation-free beams
• Accommodates 1 beam control lens or filter

HIGH QUALITY TRIMS

• Available with die cast bevels, pinholes, and angle cut reflectors
• Flanged and flangeless for gypsum
• Must specify NT3FMA for gypsum flangeless installation

FIELD REPLACEABLE DRIVER

• Accommodates 120-277V input and multiple control protocols
• Dims without perceived flicker to <1% depending on driver specified
• Field replaceable from below the ceiling
• >0.9 Power Factor

WARRANTY & RATED LIFE

• LED is rated for >50,000 hours at 70% lumen maintenanc
• 5- year limited warranty.

CEILING THICKNESS

• Accommodates 1/2" to 1 1/2" ceiling thickness

INSTALLATION

• New construction or remodel (install from below) are available.
• Residential style bar hanger provided with all new construction housings except when specified with emergency battery.
• Vertically adjustable mounting brackets (butterfly brackets) are provided on non-ICAT new construction housings.

JUNCTION BOX

• New construction housings are rated for (4) No. 12 AWG 9 degree C through branch circuit conductors (excludes ECOS2 & ECOD drivers)
• New Construction housings include (6) 1/2", (1) 3/4", (4) Nonmetallic sheathed cable knock-outs.
• Remodel housings feature (8)1/2" knockouts suitable for daisy chain wiring.
• Push-in electrical connectors for field connections.

CODES & LABELS

• UL & cUL listed for through branch wiring (excludes ECOS2 & ECOD), damp location. Listed for wet location with WSOL option
• ICAT meets energy code air leakage requirements per ASTM E283
• ENERGY STAR certified (excludes NT3DPIN & NT3WW)
• Title 24, Part 6: JA-8 Compliant with 90CRI (excludes NT3DPIN & NT3WW)
• ICAT housings are rated for direct contact with insulation
• Low Density Spray Foam Insulation Compatible: 04LM|08LM (ICAT option) are compatible with foam insulation with an R-Value of 4.3 per inch or less (excludes ECOS2 & ECOD)
• Union made

A+ CAPABLE LUMINAIRE

• This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands' specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight control networks when ordered with drivers marked by a shaded background on ordering information
