Juno Iota IIS 750 120/277 90M HE SD 3ZONE DR3 AI SC 750 Watt Emergency Inverter for CA Title 20, 120-277V, 90 Minutes Emergency Operation, Self-Diagnostic
Juno Iota IIS 750 120/277 90M HE SD 3ZONE DR3 AI SC 750 Watt Emergency Inverter for CA Title 20, 120-277V, 90 Minutes Emergency Operation, Self-Diagnostic
Regular price
Price:
$5,153.69
Regular price
Price:
Sale price
$5,153.69
Unit price
per
MODEL: Juno-IIS-32086
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION

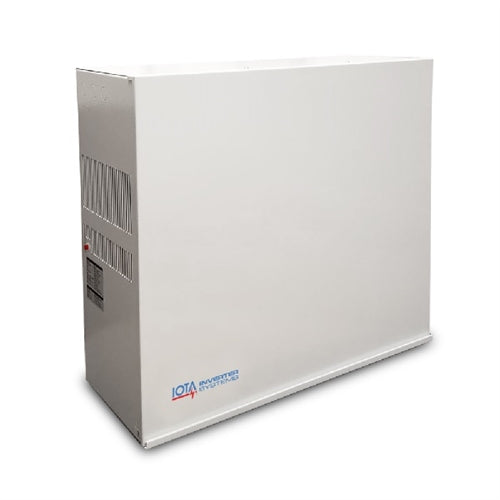

The IOTA IIS 750 is a UL Listed stand-alone pure sine wave output inverter designed to provide power to designated emergency lighting fixtures. In a power loss situation, the IOTA IIS 750 will supply 750 watts of emergency power from the onboard battery supply.
The IOTA IIS 750 is a UL Listed stand-alone pure sine wave output inverter designed to provide power to designated emergency lighting fixtures. In a power loss situation, the IOTA IIS 750 will supply 750 watts of emergency power from the onboard battery supply.
The IOTA IIS 750 works in conjunction with LED, incandescent, and fluorescent lamp and fixture types and will automatically run switched, normally-on, or normally-off designated emergency fixtures. The IIS 750 includes self-testing/self-diagnostics and will automatically conduct required monthly and annual tests. The IOTA IIS 750 features increased inrush capability to prevent shutdown caused by inrush currents, allowing operation of loads at the full rated output of the unit with no need for circuit de-rating. The IIS 750 is designed for high-efficiency performance and is certified in the CA Title 20 Appliance Efficiency Database. The IIS 750 features three sets of switched input and dimming leads, allowing for emergency power and dimming control on three different designated circuits. The IIS 750 is available in a surface mount housing and comes with IOTA's standard one-year electronics warranty and ten-year pro-rata battery warranty.
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
- Input Voltage: (Universal, 2-wire) 120-277V, 60Hz
- Output Voltage: (auto-detect) 120/277V, 60Hz
- Emergency Output Power: 750 Watts / 835VA
- Unswitched Input Rating: 300W max @ 0.9 PF (120VAC) (PF is ≥ 0.6 for 227VAC)
- Switched Input Rating (total): 835VA (@0.5 leading to 0.5 lagging PF)
- Lamps Operated: LED (per NEMA 410), Fluorescent, Incandescent
- Transfer Time: less than 1.3 seconds
- Surge Protection: Meets ANSI/IEEE C62.41.2-2002
- Emergency Operation: 90 minutes
- Frequency Regulation (emergency): 0.33% (0.2Hz)
- Operating Temp: 20° to 30° C
- Battery: Valve Regulated Lead Acid (VRLA)
- Weight: 232 lbs.
- Certifications: UL 924 Listed for U.S: and Canada CA T20 Appliance Efficiency Database
