Juno J6RL G4 DB 09LM 27K 90CRI 120 FRPC BWH Recessed Lighting 6" Gen 4 Retrofit LED Downlight Trim Module 900 Lumens, 2700K color Temperature, Black Baffle, White Trim, Less Medium Base Socket Adapter
Juno J6RL G4 DB 09LM 27K 90CRI 120 FRPC BWH Recessed Lighting 6" Gen 4 Retrofit LED Downlight Trim Module 900 Lumens, 2700K color Temperature, Black Baffle, White Trim, Less Medium Base Socket Adapter
Regular price
Price:
$71.40
Regular price
Price:
Sale price
$71.40
Unit price
per
MODEL: Juno-J6RL-1680
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.
description
PRODUCT DESCRIPTION

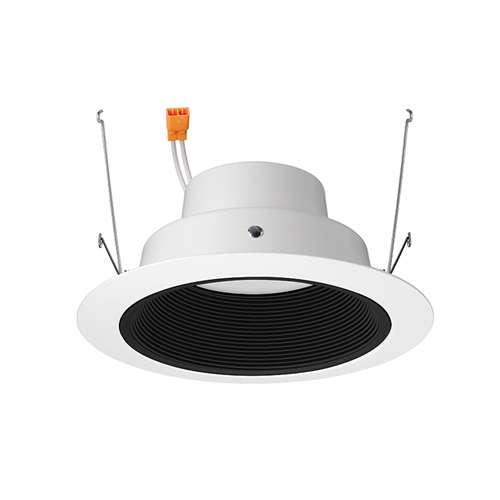

- All-in-one 6" LED Retrofit downlight trim installs into existing 6" incandescent housings with medium base sockets or Juno IC23 LEDT24 and IC23R LEDT24 quick connect recessed housings
- May be used in housings completely covered with insulation
- Selection of interchangeable baffle and cone trim inserts can be changed in the field to customize the look of the product
- Dimmable with most standard incandescent or electronic low voltage dimmers
- Designed to provide 50,000 hours of life
- 5 year limited warranty on LED components.
PRODUCT SPECIFICATIONS
LED Retrofit Downlight Trim- Aluminum housing with white painted flange as standard
- All-in-one design where LED light engine mounts directly to trim
- Quick release slot allows for field changing of trim inserts
- Provided with torsion springs as standard
- Accessory kit available for use in housings that do not have torsion spring retaining brackets.
- LEDs are integrated to one piece high purity aluminum, thermally conductive housing to provide uninterrupted heat transfer to ensure long life of the LED
- 2700K, 3000K, 3500K or 4000K color temperature available
- 90 CRI minimum
- Accommodates 120 volts AC at 60Hz
- Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage wall box dimmers
- For a list of compatible dimmers, see JUNOICLED-DIM and reference dimmer list for dedicated 120V only housing.
Trim Inserts
- Choice of baffle or cone inserts in a selection of finishes ship installed in trim
- Interchangeable design allows the inserts to be changed in the field
- All inserts available to order as an accessory.
- Computer-optimized reflector design with high reflectance white finish coupled with a high transmission diffusing lens conceals the LEDs
- Efficient system that can produce over 900 lumens while using 14W.
- Trim features quick connect plug installed as standard for installation into IC23 LEDT24 and IC23R LEDT24 housings with mating connector
- a medium base socket adapter whip sold separately.
Life Rated for 50,000 hours at 70% lumen maintenance.
Labels
- ENERGY STAR Certified when used with select baffle and cone inserts
- Suitable for wet locations
- Union made
- UL and cUL classified for use with 6" incandescent medium based housings and Juno IC23 LEDT24 or IC23R LEDT24; see below for specific compatibility requirements.

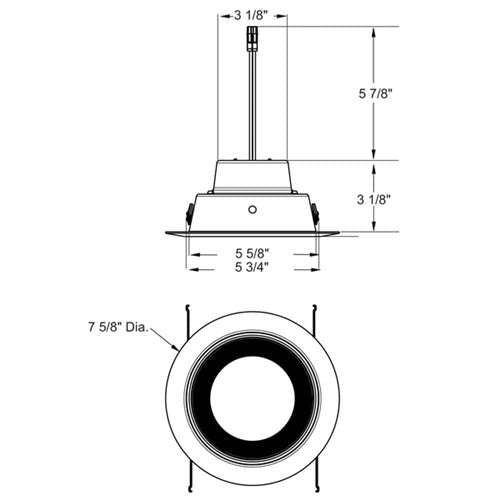

The J6RL G4 retrofit module is compatible with most 6" recessed housings measuring at least 5-1/4" high with an inside diameter between 6" and 6-3/4". Removal of the housing socket plate or socket mounting bracket may be required in order for the trim to fit properly. If housing does not have torsion spring brackets, the V6RLTRB accessory is required.
Compatible housings include, but not limited to:
- Juno housings: IC2, IC22, IC23, IC21 and TC2 Series
- Juno quick-connect LED housings: IC23 LEDT24 and IC23R LEDT24
- Lithonia housings: L7X and LC6 Series
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
