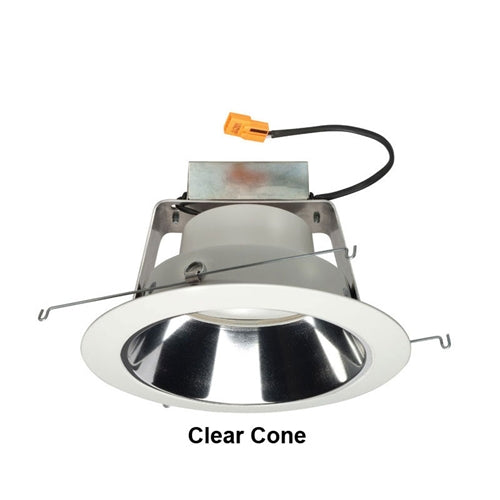

Juno Recessed Lighting J6RLWDG3-3K-6-CLW 6" IC WarmDim LED Retrofit Downlight Trim Module 600 Lumens, 3000K Color Temperature, Clear Cone, Less Medium Base Socket Adapter

Juno Recessed Lighting J6RLWDG3-3K-6-CLW 6" IC WarmDim LED Retrofit Downlight Trim Module 600 Lumens, 3000K Color Temperature, Clear Cone, Less Medium Base Socket Adapter

Price: $125.74
Price: $125.74

MODEL: Juno-J6RLWDG3-3K-6-CLW

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
free shiping details >>
Request a Quote
Ordering a large quantity? Request a quote

When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.

View full details

description

Description

Emulates incandescent dimming. Can be installed in dedicated 6" Juno housings with quick connects for full T24 compliance, or can be installed in 6" housings with medium-base socket using supplied adapter. Compatible with most 6" recessed housings measuring at least 5 1/4" high with an inside diameter between 6" and 6 3/4". Choose from a selection of cone or baffle trim inserts.

Features & Benefits

  • All-in-one 6” LED Retrofit eyeball trim with WarmDim technology installs into existing 6” incandescent housings with medium base sockets or Juno IC23-LEDT24 and IC23R-LEDT24 quick connect recessed housings
  • LED color temperature warms while dimming to emulate the dimming performance of traditional incandescent light sources
  • May be used in housings completely covered with insulation
  • Selection of interchangeable baffle and cone trim inserts can be changed in the field to customize the look of the product
  • Dimmable with most standard incandescent or electronic low voltage dimmers
  • Designed to provide 50,000 hours of life
  • 5 year limited warranty on LED components.

LED Retrofit Downlight Trim Aluminum housing with white painted flange as standard.
All-in-one design where LED light engine mounts directly to trim.
Quick release slot allows for field changing of trim inserts.
Provided with torsion springs as standard.
Accessory kit available for use in housings that do not have torsion spring retaining brackets.
LED Light Engine Proprietary micro processor controlled light engine emulates dimming performance of incandescent light source.
Integrated to one piece high
purity aluminum, thermally conductive housing providing uninterrupted heat transfer
to ensure long life of the LEDs.
3000K color temperature at full lumen output
83 CRI typical.
LED Driver Dedicated 120 volt driver.
Power factor > 0.9 at 120V input.
Dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers.
Trim Inserts Choice of baffle or cone inserts in a selection of finishes ship installed in trim
Interchangeable design allows the inserts to be changed in the field
All inserts available to order as an accessory.
Optical System Computer-optimized reflector design with high reflectance white finish coupled with a high transmission diffusing lens conceals the LEDs.
Efficient system that can produce over 600 lumens while using less than 15W
Electrical Connections Trim features quick connect plug installed as standard for installation into IC23-LEDT24 and IC23R-LEDT24 housings with mating connector.
a medium base socket adapter whip sold separately.
Life Rated for 50,000 hours at 70% lumen maintenance.
Labels Suitable for damp locations
Union made
UL and cUL classified for use with 6” incandescent medium base housings and Juno IC23-LEDT24 or IC23R-LEDT24.
Compatible Housings
 The J6RLWDG3 retrofit module is compatible with most 6" recessed housings measuring at least 5-1/4" high with an inside diameter between 6" and 6-3/4".
Removal of the housing socket plate or socket mounting bracket may be required in order for the trim to fit properly. If housing does not have torsion spring brackets, the V6RL-TRB accessory is required.
Compatible housings include, but not limited to: Juno housings: IC2 and TC2 Series, IC22 Series, IC23 Series, IC21 Series
