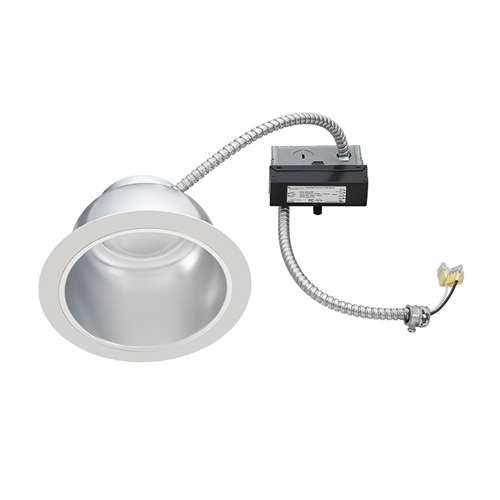

Juno JCLR6S 24LM 40K 80CRI 347 ZT HZWH Recessed Lighting 6" LED Retrofit Trim for 6" - 6 1/2" Commercial Rough-In Section, 2400 Lumens, 4000K Color Temperature, 80 CRI, 347V, Haze Finish
Juno JCLR6S 24LM 40K 80CRI 347 ZT HZWH Recessed Lighting 6" LED Retrofit Trim for 6" - 6 1/2" Commercial Rough-In Section, 2400 Lumens, 4000K Color Temperature, 80 CRI, 347V, Haze Finish
Regular price
Price:
$132.97
Regular price
Price:
Sale price
$132.97
Unit price
per
MODEL: Juno-JCLR6S-2042
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
PRODUCT DESCRIPTION
- Energy efficient LED retrofit module fits into installed 6" non-IC commercial recessed incandescent, CFL or H.I.D. rough-in sections
- If installed where insulation is present, the insulation must be pulled back 3" from all sides of the retrofit installation
- Replaces CFL lamps totaling 42W or greater, producing up to 2400 lumens typical at 27.5W
- Dimmable
- LED retrofit module is designed to provide 50,000 hours of life
- 5 year warranty.
PRODUCT SPECIFICATIONS
- Spun aluminum reflector and separate nonmetalic trim ring with shadow free, knife edge design
- All-in-one design where LED light engine is mounted directly to trim
- Quick disconnect in j-box allows for easy wiring of retrofit conduit whip assembly without reflector interference
- Provided with conduit whip and connector to mount to 1/2" trade size knockout in junction box for ease of installation into existing rough-in sections
- Provided with spring steel friction clips for mounting.
- Replaceable light engine is mounted directly to aluminum trim providing superior thermal management to ensure long life
- LEDs are binned within a 3-step MacAdam Ellipse exceeding ENERGY STAR requirements for superior fixture to fixture color uniformity
- 2700K, 3000K, 3500K or 4000K LED color temperatures
- 80 or 90 CRI minimum.
- Choice of dedicated 120 volt driver, universal voltage driver that accommodates input voltages from 120-277 volts AC at 50/60Hz or 347V driver
- Power factor > 0.9 at 120V input
- 120 volt only dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
- Universal voltage and 347V driver is dimmable with the use of most 0-10V wall dimmers
- For a list of compatible dimmers, see JUNOJCLR-DIM.
- Trim includes conduit whip and connector to attach directly to 1/2" trade size knockout in junction box
- All electrical connectors and hardware provided for easy installation after fluorescent socket and ballast are removed from rough-in sections.
- Spun aluminum trim with white or haze finish
- Deeply regressed diffusing lens conceals the LEDs from direct view.
Life Rated for 50,000 hours at 70% lumen maintenance.
Labels
- ENERGY STAR Certified
- UL and cUL classified for use with most standard UL listed 6" non-IC commercial rough-in sections; see below for specific compatibility requirements
- Damp location.
Testing
All reports are based on published industry procedures; field performance may differ from laboratory performance.
All reports are based on published industry procedures; field performance may differ from laboratory performance.
Specifications subject to change without notice.
