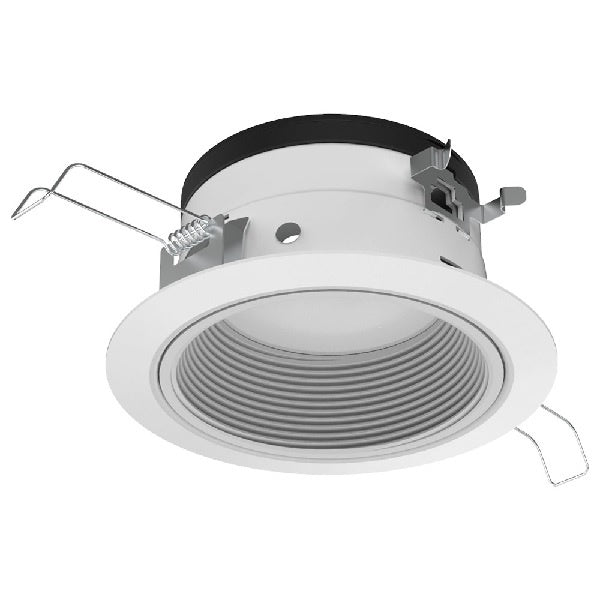

Juno JPDZ4 DB ALO10 SWW5WD 90CRI 120 FRPC WWH Podz 4" LED Downlight, Round Downlight Baffle, Adjustable Lumen Output, Switchable White 2700K-5000K + WarmDim (2850K-1900K), 90 CRI, 120V Forward/Reverse Phase Cut, 5% Dim, White, White Trim Ring

Juno JPDZ4 DB ALO10 SWW5WD 90CRI 120 FRPC WWH Podz 4" LED Downlight, Round Downlight Baffle, Adjustable Lumen Output, Switchable White 2700K-5000K + WarmDim (2850K-1900K), 90 CRI, 120V Forward/Reverse Phase Cut, 5% Dim, White, White Trim Ring

Price: $38.61
Price: $38.61

MODEL: Juno-JPDZ-31621

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT APPLICATIONS
  • Ideal for a breadth of residential and commercial applications
  • Shallow plenum installations
  • IC rated - for direct contact with insulation
  • Wet location listed - for use in shower applications

PRODUCT SPECIFICATIONS
LED Light Engine
  • Patent pending integral light engine mounts directly to aluminum housing providing superior heat transfer to ensure long life of the electronics
  • Switchable LED color temperature and adjustable lumen output directly on module for easy switching
  • Advanced color mixing technology provides consistent color rendering on the black body curve at all LED color temperatures
  • LED color temperature settings include 2700K, 3000K, 3500K, 4000K and 5000K; factory set at 3000K
  • Three lumen switching options include 700L, 1000L and 1200L; factory set at 1000L
  • Dedicated WarmDim setting provides performance similar to incandescent light sources and warms the LED color temperature over the dimming range from 2850K to 1900K
  • 90CRI minimum
LED Driver
  • Choice of dedicated 120 volt (120) driver or universal voltage (MVOLT) drivers that accommodate input voltages from 120-277 volts AC at 50/60Hz
  • Power factor > 0.9 at 120V input
  • 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
  • Universal voltage drivers are dimmable with the use of most 0-10V wall box dimmers
  • For a list of compatible dimmers, see JUNOICLED-DIM
Optical System
  • Computer-optimized reflector design with high reflectance white finish coupled with a high transmission diffusing lens conceals the LEDS and produces uniform aperture luminance
  • Deep regression of lens produces a low glare, efficient system typical of a standard 4” downlight medium flood distribution providing even illumination for general downlighting applications.
Certifications
  • ENERGY STAR Certified
  • Can be used to comply with 2019 Title 24, Part 6, JA8 high efficacy LED light source requirements
  • UL listed for U.S. and Canada through-branch wiring, damp locations and for wet location (indoor covered ceiling)
  • UL and cUL
Trim Module Construction

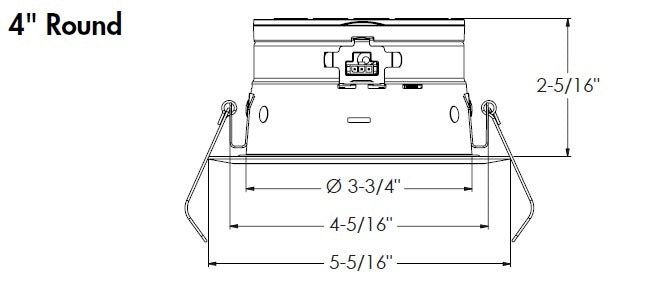

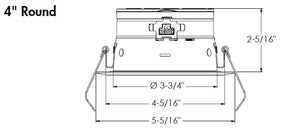

  • Low profile, < 3" aluminum housing with integral white flange
  • Designed for installation directly into the plenum in IC (insulated ceiling) or non-IC construction
  • Provided with spring clips for ease of installation
  • Accommodates up to a 1 1/2" ceiling thickness
Trim Finishes
  • Choice of baffle or cone trims in a selection of finishes ship installed in trim
Remodel Junction Box Construction
  • 22-gauge die-formed galvanized steel junction box
  • Conduit cable with quick connect electrical plug pre-wired on junction box and allows for easy electrical connection with the trim module
  • Junction box provided with (5) 1/2" and (1) 3/4" knockouts, (4) integrated wire traps for 12/2 or 12/3 NM cable UL listed and cUL listed for through-branch wiring, maximum of 4 #12 branch circuit
New Construction Mounting Frame
  • 22-gauge die-formed galvanized steel mounting frame
  • Rough-in section (junction box, mounting frame and bar hangers) fully assembled for ease of installation
  • Pre-installed Air-Loc gasket applied to frame
  • Conduit cable with quick connect electrical plug pre-wired on junction box and allows for easy electrical connection with the trim module
  • Junction box provided with (5) 1/2" and (1) 3/4" knockouts, (4) knockouts for 12/2 or 12/3 NM cable and ground wire
  • UL listed and cUL listed for through-branch wiring, maximum of 6 #12 branch circuit conductors
  • Junction box provided with removable access plates
  • Knock-outs equipped with pryout slots Includes Patented (US Patent D552,969) Real Nail 3 bar hangers: telescoping system permits quick placement of housing any where within 24" O.C. joists or suspended ceilings
  • Includes removable nail for repositioning of fixture in wood joist construction
  • Integral T-bar notch and clip for suspended ceilings.
  • LED housing is designed to provide 50,000 hours of life
  • 5 year limited warranty on LED components.
