Home > Juno Lighting > Juno Lighting JSF 5IN 07LM 30K 90CRI MVOLT ZT WH Recessed Lighting 5" LED Round SlimForm Surface Mount Downlight, 700 Lumens, 3000K Color Temperature, 90 CRI, Universal Voltage 120-277V, 0-10V Dimming, White Finish

  • Juno Lighting JSF 5IN 07LM 30K 90CRI MVOLT ZT WH Recessed Lighting 5" LED Round SlimForm Surface Mount Downlight, 700 Lumens, 3000K Color Temperature, 90 CRI, Universal Voltage 120-277V, 0-10V Dimming, White Finish
  • Juno Lighting JSF 5IN 07LM 30K 90CRI MVOLT ZT WH Recessed Lighting 5" LED Round SlimForm Surface Mount Downlight, 700 Lumens, 3000K Color Temperature, 90 CRI, Universal Voltage 120-277V, 0-10V Dimming, White Finish
1 2

Juno Lighting JSF 5IN 07LM 30K 90CRI MVOLT ZT WH Recessed Lighting 5" LED Round SlimForm Surface Mount Downlight, 700 Lumens, 3000K Color Temperature, 90 CRI, Universal Voltage 120-277V, 0-10V Dimming, White Finish

Juno Lighting JSF 5IN 07LM 30K 90CRI MVOLT ZT WH Recessed Lighting 5" LED Round SlimForm Surface Mount Downlight, 700 Lumens, 3000K Color Temperature, 90 CRI, Universal Voltage 120-277V, 0-10V Dimming, White Finish

Price: $168.54
Price: $168.54

MODEL: Juno-JSF-16359

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT DESCRIPTION

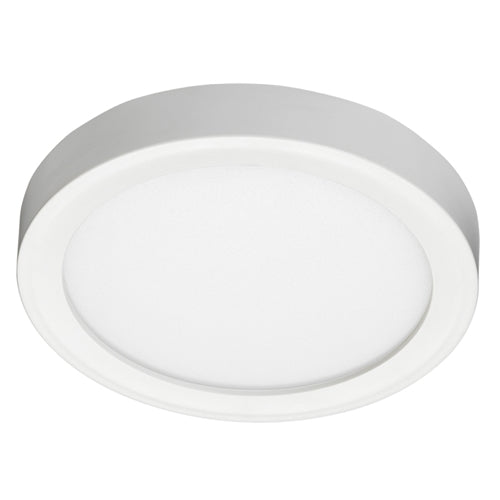

Sleek, ultra-low profile energy efficient LED surface mount downlights in multiple sizes from 5" to 13". Provides economical installation by mounting directly over standard and fire-rated junction boxes. Optional finish trims and shrouds available for custom, designer look similar to standard recessed downlights. Provides general illumination in residential and commercial applications including multi-family and hospitality. Ideal for use in corridors, living spaces, closets, hallways, pantries, stairways, outdoor covered areas and much more.

PRODUCT SPECIFICATIONS
Construction
  • Shallow, less than 1", solid ring with white finish
  • Non conductive fixture for shower light applications
  • Optional, field installable finish trims available for 5" and 7" versions to change the exterior finish of fixture
  • Optional, field installable decorative baffle and cone shrouds for 5" and 7" versions provide the aesthetic and source shielding similar to the experience of a fully recessed downlight.
Optics Light guide technology combined with diffusing lens conceals the LEDs from direct view and provides uniform lens luminance.
LED Light Engine
  • LEDs mounted directly to heatsink designed to provide superior thermal management and ensure long life
  • 2700K, 3000K, 3500K or 4000K LED color temperature
  • LEDs binned for 4-step MacAdam ellipse color consistency
  • 90 CRI minimum.
LED Driver
  • Choice of dedicated 120 volt (120) driver or universal voltage (MVOLT) driver that accommodates input voltages from 120-277 volts AC at 50/60Hz
  • Power factor > 0.9 at 120V input
  • 120 volt driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
  • Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers

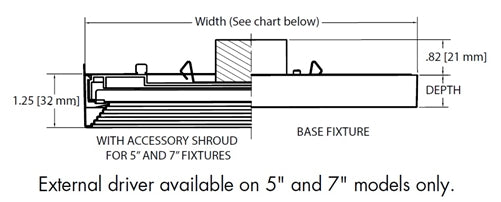

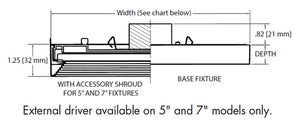

  • External driver is only available on 5" and 7" models
  • For a list of compatible dimmers, see JUNOSLIMFORM-DIM.
Emergency Battery Option
  • Available on fixture sizes 11" and larger
  • Battery factory assembled to fixture with integral test switch (EL option)
  • Drives LEDs for 90 minutes to meet Life Safety Code (NFPA-LSC), National Electrical Code (NEC), and UL requirements
  • EBX option provides back box without battery for consistent look when used in same space as fixtures with EL emergency option.
Life Rated for 50,000 hours at >70% lumen maintenance.
Labels
  • ENERGY STAR certified
  • Certified to the high efficacy requirements of California T24 JA8-2016
  • CSA listed for US and Canada
  • Suitable for wet locations (covered ceilings).
Warranty 5-year limited warranty.
