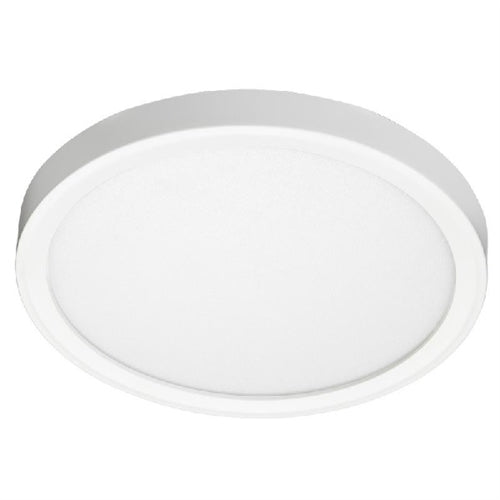

Home > Juno Lighting > Juno JSF 7IN 10LM SWW5 90CRI MVOLT ZT WH Recessed Lighting 7" LED Round SlimForm Surface Downlight, 1000 Lumens, 2700K-5000K Color Selectable, 90 CRI, 120-277V, 0-10V Dimming, White

  • Juno JSF 7IN 10LM SWW5 90CRI MVOLT ZT WH Recessed Lighting 7" LED Round SlimForm Surface Downlight, 1000 Lumens, 2700K-5000K Color Selectable, 90 CRI, 120-277V, 0-10V Dimming, White
  • Juno JSF 7IN 10LM SWW5 90CRI MVOLT ZT WH Recessed Lighting 7" LED Round SlimForm Surface Downlight, 1000 Lumens, 2700K-5000K Color Selectable, 90 CRI, 120-277V, 0-10V Dimming, White
1 2

Juno JSF 7IN 10LM SWW5 90CRI MVOLT ZT WH Recessed Lighting 7" LED Round SlimForm Surface Downlight, 1000 Lumens, 2700K-5000K Color Selectable, 90 CRI, 120-277V, 0-10V Dimming, White

Juno JSF 7IN 10LM SWW5 90CRI MVOLT ZT WH Recessed Lighting 7" LED Round SlimForm Surface Downlight, 1000 Lumens, 2700K-5000K Color Selectable, 90 CRI, 120-277V, 0-10V Dimming, White

Price: $69.30
Price: $69.30

MODEL: Juno-JSF-32830

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Construction
  • Shallow, less than 1", solid ring with white finish
  • Non conductive construction allows for light shower applications
  • Optional, field installable finish trims available for 5" and 7" versions to change the exterior finish of fixture
Optics
  • Light guide technology combined with diffusing lens conceals the LEDs from direct view and provides uniform lens luminance.
LED Light Engine
  • LEDs mounted directly to heatsink designed to provide superior thermal management and ensure long life
  • Selectable CCT with steps at 27K, 30K, 35K, 40K, 50K
  • LEDs binned for 4-step MacAdam ellipse color consistency
  • 90 CRI minimum.
LED Driver
  • Choice of dedicated 120 volt (120) driver or universal voltage (MVOLT) driver that accommodates input voltages from 120-277 volts AC at 50/60Hz
  • Power factor > 0.9 at 120V input
  • 120 volt driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers. Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers
  • For a list of compatible dimmers, see JUNOSLIMFORM-DIM.
Life
Rated for 50,000 hours at >70% lumen maintenance.

Labels
  • ENERGY STAR certified
  • Certified to the high efficacy requirements of California T24 JA8-2019
  • CSA listed for US and Canada
  • Suitable for wet locations (covered ceilings).
Warranty
  • 5-year limited warranty.
