Home > Juno Lighting > Juno JSFSQ 12IN 13LM SWW5 90CRI MVOLT ZT WH EM Recessed Lighting 12" LED Square SlimForm Surface Mount Downlight, 1300 Lumens, 2700-5000K Color Temperature, 90 CRI, Universal Voltage 120-277V, 0-10V Dimming, Battery Back-Up, White Finish

  • Juno JSFSQ 12IN 13LM SWW5 90CRI MVOLT ZT WH EM Recessed Lighting 12" LED Square SlimForm Surface Mount Downlight, 1300 Lumens, 2700-5000K Color Temperature, 90 CRI, Universal Voltage 120-277V, 0-10V Dimming, Battery Back-Up, White Finish
  • Juno JSFSQ 12IN 13LM SWW5 90CRI MVOLT ZT WH EM Recessed Lighting 12" LED Square SlimForm Surface Mount Downlight, 1300 Lumens, 2700-5000K Color Temperature, 90 CRI, Universal Voltage 120-277V, 0-10V Dimming, Battery Back-Up, White Finish
1 2

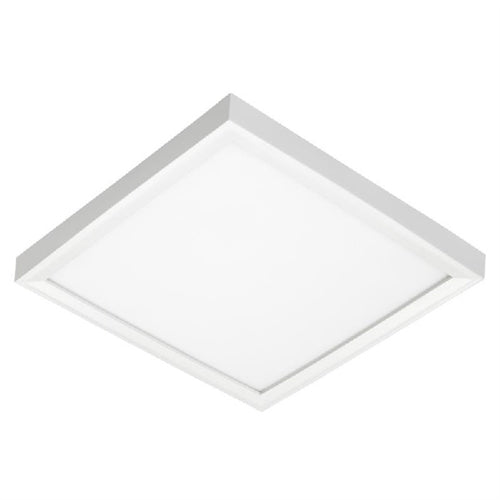

Juno JSFSQ 12IN 13LM SWW5 90CRI MVOLT ZT WH EM Recessed Lighting 12" LED Square SlimForm Surface Mount Downlight, 1300 Lumens, 2700-5000K Color Temperature, 90 CRI, Universal Voltage 120-277V, 0-10V Dimming, Battery Back-Up, White Finish

Juno JSFSQ 12IN 13LM SWW5 90CRI MVOLT ZT WH EM Recessed Lighting 12" LED Square SlimForm Surface Mount Downlight, 1300 Lumens, 2700-5000K Color Temperature, 90 CRI, Universal Voltage 120-277V, 0-10V Dimming, Battery Back-Up, White Finish

Price: $252.80
Price: $252.80

MODEL: Juno-JSFSQ-32808

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Construction
  • Shallow, less than 1.2", solid ring with white finish
  • Non conductive construction allows for light shower applications
Optics
  • Light guide technology combined with diffusing lens conceals the LEDs from direct view and provides uniform lens luminance.
LED Light Engine
  • LEDs mounted directly to heatsink designed to provide superior thermal management and ensure long life
  • Selectable CCT with steps at 27K, 30K, 35K, 40K, 50K
  • LEDs binned for 4-step MacAdam ellipse color consistency
  • 90 CRI minimum.
LED Driver
  • Choice of dedicated 120 volt (120) driver or universal voltage (MVOLT) driver that accommodates input voltages from 120-277 volts AC at 50/60Hz
  • Power factor > 0.9 at 120V input
  • 120 volt driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
  • Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers
  • For a list of compatible dimmers, see JUNOSLIMFORM-DIM.
Emergency Battery Option
  • Battery factory assembled to fixture with integral test switch
  • Drives LEDs for 90 minutes to meet Life Safety Code (NFPA-LSC), National Electrical Code (NEC), and UL requirements
  • Title 20 certified battery pack
  • EBX option provides back box without battery for consistent look when used in same space as fixtures with EM emergency option
  • Damp location only with emergency option.
Life
  • Rated for 50,000 hours at >70% lumen maintenance.
Labels
  • ENERGY STAR certified
  • Certified to the high efficacy requirements of California T24 JA8-2019
  • CSA listed for US and Canada
  • Suitable for wet locations (covered ceilings).
Warranty
  • 5-year limited warranty.
