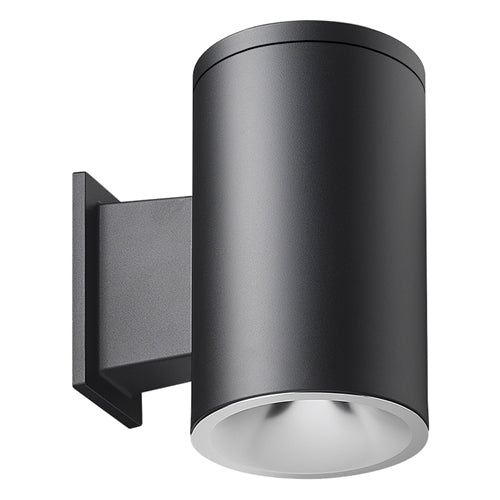

Juno LC4W 23LM 35K MVOLT B G4 80CRI ZT HW BD Indy 4 inch LED Round Cylinder Wall Mount Light Hyperbolic Reflector Trim, Black Diffuser

PRODUCT SPECIFICATIONS
Atrius -Ready Product: Select models of the L-series product line deliver valuable data and connectivity to the Atrius IoT location based platform services.

OPTICS
Hyperbolic Reflector:

• Unique hyperbolic shape optimized for small, directional LED source, maximizes fixture efficiency while reducing lamp image and aperture brightness
• Geometry of hyperbolic curve provides unique aperture appearance and smoother light distribution

Parabolic Cone/Lens: Computer-optimized parabolic cone with frosted convexed lens regressed into cone provides uniform distribution with no striations
Baffle: White or black painted deep multi-groove aluminum baffle insert with integral white painted flange and frosted convexed glass lens
Wallwash Cone/Lens: Computer-optimized trim with integral wall wash kicker and frosted convexed lens regressed into cone provides uniform distribution with no striations

ELECTRICAL
LED Light Engine:

• Compact light source delivers uniform illumination without pixilation, enabling excellent beam control
• 2SDCM (5000K within 3SDCM)
• 80, 90 & 97 CRI
• Light engine mounts directly to heat sink and is easily replaceable

Passive Cooling: Cast aluminum heat sink integrated directly with housing provides superior thermal management to ensure the long life of LED
LED Driver: Power factor >0.9
Dimming:

• Dimmable via 0-10V protocol standard
• Optional drivers available for use with eldoLED, Lutron EcoSystem, 2-wire dimmers, DMX, or DALI
• For a list of compatible dimmers, see LED-DIM

Life:

• Rated for 60,000 hours at 70% lumen maintenance
• Available with optional Lumen Depreciation Indicator (LDI)

Emergency Battery Pack (Optional) output:

• Provides a minimum of 600 (BR), or 1000 (HBR) lumens for a minimum duration of 90 minutes
• BR option is CEC Title 20 compliant

Warranty: 5 years when used in accordance with manufacturing guidelines.
