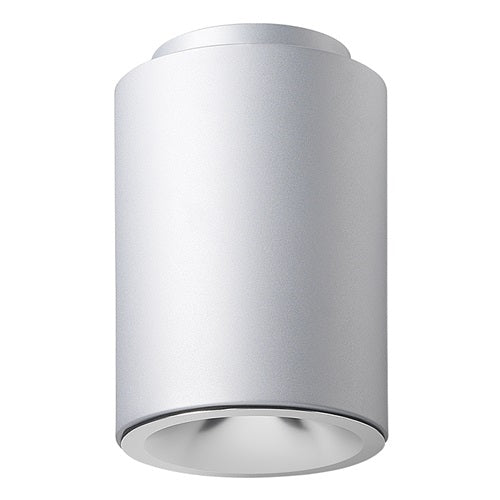

Home > Juno Lighting > Juno LC8S 17LM 50K MVOLT S G4 80CRI DALI BR Indy 8" Round Cylinder Surface Mount L-Series, 1700 Lumens, 5000K Color Temperature, 120-277V, Silver Cylinder, Gen 4, 80 CRI, DALI Control Dimming

  • Juno LC8S 17LM 50K MVOLT S G4 80CRI DALI BR Indy 8" Round Cylinder Surface Mount L-Series, 1700 Lumens, 5000K Color Temperature, 120-277V, Silver Cylinder, Gen 4, 80 CRI, DALI Control Dimming
1 1

Juno LC8S 17LM 50K MVOLT S G4 80CRI DALI BR Indy 8" Round Cylinder Surface Mount L-Series, 1700 Lumens, 5000K Color Temperature, 120-277V, Silver Cylinder, Gen 4, 80 CRI, DALI Control Dimming

Juno LC8S 17LM 50K MVOLT S G4 80CRI DALI BR Indy 8" Round Cylinder Surface Mount L-Series, 1700 Lumens, 5000K Color Temperature, 120-277V, Silver Cylinder, Gen 4, 80 CRI, DALI Control Dimming

Price: $763.20
Price: $763.20

MODEL: Juno-LC8S-G4-23574

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT SPECIFICATIONS
Enabled with Atrius: These products are enabled with Atrius, making them part of the Atrius Sensory Network and ready to deliver valuable data and connectivity to the Atrius Platform.

OPTICS
Hyperbolic Reflector:
  • Unique hyperbolic shape optimized for small, directional LED source, maximizes fixture efficiency while reducing lamp image and aperture brightness
  • Geometry of hyperbolic curve provides unique aperture appearance and smoother light distribution
Parabolic Cone/Lens: Computer-optimized parabolic cone with frosted convexed lens regressed into cone provides uniform distribution with no striations
Baffle: White or black painted deep multi-groove aluminum baffle insert with integral white painted flange and frosted convexed glass lens
Wallwash Cone/Lens: Computer-optimized trim with integral wall wash kicker and frosted convexed lens regressed into cone provides uniform distribution with no striations

ELECTRICAL
LED Light Engine:
  • Compact light source delivers uniform illumination without pixilation, enabling excellent beam control
  • 2SDCM (5000K within 3SDCM)
  • 80, 90 & 97 CRI
  • Light engine mounts directly to heat sink and is easily replaceable
Passive Cooling: Cast aluminum heat sink integrated directly with housing provides superior thermal management to ensure the long life of LED
LED Driver: Power factor >0.9
Dimming:
  • Dimmable via 0-10V protocol standard - Optional drivers available for use with eldoLED, Lutron EcoSystem, 2-wire dimmers, DMX, or DALI
  • For a list of compatible dimmers, see LED-DIM.
Life
  • Rated for 60,000 hours at 70% lumen maintenance
  • Available with optional Lumen Depreciation Indicator (LDI)
Emergency Battery Pack (Optional) output Provides a minimum of 600 (BR), or 1100 (HBR) lumens for a minimum duration of 90 minutes
Warranty 5 years when used in accordance with manufacturing guidelines.
