Juno LLP4 28LM 35K MVOLT G4 90CRI EZ1 HW BD Indy 4" Round Low Profile New Construction LED Housing,3500K, 120-277V, Gen 4, 90 CRI, eldoLED 0-10V ECOdrive Linear Dim to 1%, Hyperbolic Wide Trim, Black Diffuse Finish
Juno LLP4 28LM 35K MVOLT G4 90CRI EZ1 HW BD Indy 4" Round Low Profile New Construction LED Housing,3500K, 120-277V, Gen 4, 90 CRI, eldoLED 0-10V ECOdrive Linear Dim to 1%, Hyperbolic Wide Trim, Black Diffuse Finish
Regular price
Price:
$573.09
Regular price
Price:
Sale price
$573.09
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
OPTICS
OPTICS
Hyperbolic: Patented hyperbolic shape (U.S. Patent No. 10,670,227 B2) optimized for small, directional LED source, maximizes fixture efficiency while creating the "Silent Ceiling" appearance by reducing lamp image and aperture brightness
Geometry of hyperbolic curve provides unique aperture appearance and smoother light distribution
Parabolic/Lens: Computer-optimized parabolic reflector with frosted convexed lens regressed into cone provides uniform distribution with no striations
Wall Wash: Available in Hyperbolic and Parabolic. Both providing uniform distributions with no striations
ELECTRICAL
LED Light Engine: Compact light source delivers uniform illumination without pixilation, enabling excellent beam control
2SDCM (5000K within 3SDCM)
80, 90 & 97 CRI
Replaceable light engine with push in wire connections
Passive Cooling: Aluminum heat sink integrated directly with housing provides superior thermal management to ensure the long life of LED
LED Driver: Power factor >0.9
Easily replaceable from above or below the ceiling
Dimming: Dimmable via 0-10V protocol standard
Optional drivers available for use with eldoLED, Lutron EcoSystem, 2-wire dimmers, or DALI
For a list of compatible dimmers, see LED-DIM.
Life: Rated for 60,000 hours at 70% lumen maintenance
Emergency Battery Pack (Optional) output: Provides a minimum of 600 (BR & BRT20C), or 1000 (HBR & HBRT20C) lumens for a minimum duration of 90 minutes
BRT20C,HBRT20C options are CEC Title 20 compliant
All battery packs are remote mounted. Installation and maintenance require above ceiling access.

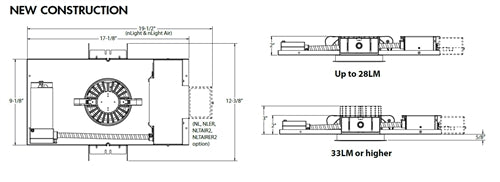

MECHANICAL
New Contruction Housing: Patented shallow plenum design (U.S. Patent No. 10,724,717 B2), universal housing installs in suspended grid, plaster or drywall
Integral heat sink conducts heat away from LED light engine
Driver is accessible from above and below ceiling and can be upgraded to accommodate future technology improvements
Mounting Frame: Heavy gauge steel lower housing ring accommodates ceilings up to 2" thick
Mounting Bracket: New Construction mounting brackets have vertical adjustment (no adjustment on Chicago Plenum option) and accepts most commercial bar hangers, including our proprietary Tru-Lock bar hangers
Our one-piece Tru-Lock bar hangers have integral T-bar locking screws and alignment notches for locating and locking fixture in the center or 1/4" tile increments
Junction Box: 3" x 8" galvanized steel junction box with (3) 1/2" knockouts facilitate quick wiring
New Construction junction box rated for four (4) No. 12 AWG 90° C branch circuit conductors (2-in, 2-out)
Flangeless Adapter: Must specify IFMA4 when flangeless, "FM" option, is specified. Suitable for drywall installation only. Remodel Housing: Patented design (U.S. Patent No. 10,724,717 B2), housing installs from below ceiling in applications where above ceiling access is not available
Not suitable for installation in T-grid ceilings
Remodel springs accommodate ceilings from 5/8" to 1-1/8" thick
Integral heat sink conducts heat away from LED light engine
Driver is accessible from below the ceiling and can be upgraded to accommodate future technology improvements.
Remodel Junction Box: 2.75" x 4.5" galvanized steel junction box with (8) ½" knockouts facilitate quick wiring
LABELS AND LISTINGS
Tested to UL1598 and CSA C22.2 250 listed for feed through and damp location
Chicago Plenum version is IC rated for 08LM -- 23LM (no spray foam insulation)
RoHS compliant
EMI complies with FCC 47,Part 15, Class A
ENERGY STAR certified, see table for designated products
I.B.E.W. Union made
BUY AMERICAN ACT: This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
Warranty: 5 years when used in accordance with manufacturing guidelines.
Geometry of hyperbolic curve provides unique aperture appearance and smoother light distribution
Parabolic/Lens: Computer-optimized parabolic reflector with frosted convexed lens regressed into cone provides uniform distribution with no striations
Wall Wash: Available in Hyperbolic and Parabolic. Both providing uniform distributions with no striations
ELECTRICAL
LED Light Engine: Compact light source delivers uniform illumination without pixilation, enabling excellent beam control
2SDCM (5000K within 3SDCM)
80, 90 & 97 CRI
Replaceable light engine with push in wire connections
Passive Cooling: Aluminum heat sink integrated directly with housing provides superior thermal management to ensure the long life of LED
LED Driver: Power factor >0.9
Easily replaceable from above or below the ceiling
Dimming: Dimmable via 0-10V protocol standard
Optional drivers available for use with eldoLED, Lutron EcoSystem, 2-wire dimmers, or DALI
For a list of compatible dimmers, see LED-DIM.
Life: Rated for 60,000 hours at 70% lumen maintenance
Emergency Battery Pack (Optional) output: Provides a minimum of 600 (BR & BRT20C), or 1000 (HBR & HBRT20C) lumens for a minimum duration of 90 minutes
BRT20C,HBRT20C options are CEC Title 20 compliant
All battery packs are remote mounted. Installation and maintenance require above ceiling access.
MECHANICAL
New Contruction Housing: Patented shallow plenum design (U.S. Patent No. 10,724,717 B2), universal housing installs in suspended grid, plaster or drywall
Integral heat sink conducts heat away from LED light engine
Driver is accessible from above and below ceiling and can be upgraded to accommodate future technology improvements
Mounting Frame: Heavy gauge steel lower housing ring accommodates ceilings up to 2" thick
Mounting Bracket: New Construction mounting brackets have vertical adjustment (no adjustment on Chicago Plenum option) and accepts most commercial bar hangers, including our proprietary Tru-Lock bar hangers
Our one-piece Tru-Lock bar hangers have integral T-bar locking screws and alignment notches for locating and locking fixture in the center or 1/4" tile increments
Junction Box: 3" x 8" galvanized steel junction box with (3) 1/2" knockouts facilitate quick wiring
New Construction junction box rated for four (4) No. 12 AWG 90° C branch circuit conductors (2-in, 2-out)
Flangeless Adapter: Must specify IFMA4 when flangeless, "FM" option, is specified. Suitable for drywall installation only. Remodel Housing: Patented design (U.S. Patent No. 10,724,717 B2), housing installs from below ceiling in applications where above ceiling access is not available
Not suitable for installation in T-grid ceilings
Remodel springs accommodate ceilings from 5/8" to 1-1/8" thick
Integral heat sink conducts heat away from LED light engine
Driver is accessible from below the ceiling and can be upgraded to accommodate future technology improvements.
Remodel Junction Box: 2.75" x 4.5" galvanized steel junction box with (8) ½" knockouts facilitate quick wiring
LABELS AND LISTINGS
Tested to UL1598 and CSA C22.2 250 listed for feed through and damp location
Chicago Plenum version is IC rated for 08LM -- 23LM (no spray foam insulation)
RoHS compliant
EMI complies with FCC 47,Part 15, Class A
ENERGY STAR certified, see table for designated products
I.B.E.W. Union made
BUY AMERICAN ACT: This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
Warranty: 5 years when used in accordance with manufacturing guidelines.
