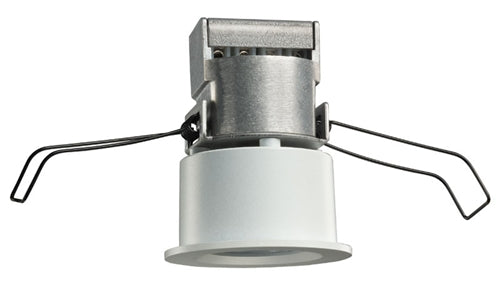

Juno Recessed Lighting MD1LW35K-FL-WH Wet Location 2-1/4" Mini LED Downlight 3500K Flood Beam Spread, White Finish
Juno Recessed Lighting MD1LW35K-FL-WH Wet Location 2-1/4" Mini LED Downlight 3500K Flood Beam Spread, White Finish
Regular price
Price:
$145.17
Regular price
Price:
Sale price
$145.17
Unit price
per
MODEL: Juno-MD1LW35K-FL-WH
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
free shiping
details >>
Ordering a large quantity?
Request a quote
Remote mount Class 2 120V to 12V AC electronic or magnetic driver/transformer required. Click here for transformer.
description
Description
The MD1LW mini LED recessed downlight is for use in wet locations and is IC rated for insulated or non-insulated applications
Features & Benefits
- Sleek, compact form factor provides direct accent lighting with low glare optic system that approximates the light output and distribution of 20W halogen lamps
- Ideal for both residential and commercial wet location applications including bathrooms and eave lighting
- Remote mount Class 2 120V to 12V AC electronic or magnetic driver/transformer required
- Designed to provide 50,000 hours of life
- 5 year limited warranty on LED components
- No harmful ultraviolet or infrared wavelengths
- No lead or mercury
- Comparable light output to 20W MR11 halogen lamps while consuming 5W
| Model # | MD1LW |
| Optical System | Fixtures are offered with a choice of spot (16°), narrow flood (24°) or flood (35°) beam patterns. LED source concealed with lensed optic is deeply regressed into an internal reflector to produce a low glare system. Reflectors finished to match trim ring color for uniform appearance. Field replacement of optical lenses is NOT recommended. |
| LED Driver/Transformer | Onboard fixture LED driver operates at less than 5 watts input at 12-volts AC. Requires remote mount Class 2, 120V to 12V AC electronic or magnetic driver/transformer for operation. Juno's TL602E electronic driver/transformer and TL576 magnetic transformer are designed specifically for use with these fixtures. |
| Dimming | May be dimmed with dimmers tested and qualified by Juno for use with TL602E and TL576– see driver/transformer specifications for compatible dimmers. Color temperature remains constant over dimming range. Consult factory for additional information. |
| Life | Rated for 50,000 hours at 70% lumen maintenance. |
| Labels | UL Listed for wet locations and daisy chaining. Union made. UL and cUL listed. RoHS compliant. |
| Housing | Designed for use in IC (insulated ceiling) or non-IC construction. Die cast aluminum housing. Finished with either corrosion resistant painted finishes or E-coat for decorative plated finishes. |
| Wiring Compartment | Provided with removable access plate. Four pole terminal block allows for quick, secure connection. UL /cUL listed for daisy chaining. Easy to wire with commonly available low voltage cable (Type CL2 or NEC equivalent, 18-12 AWG). Consult local codes for compliant wiring methods. |

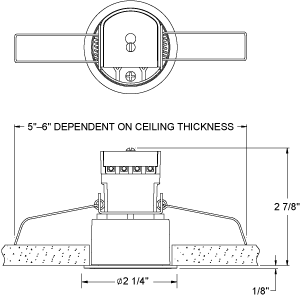

| Mounting | Zinc plated torsion clips are provided fully assembled to housing. Springs allow for fast, secure installation or removal in mounting surfaces from 1/8" to 1" thick material. 2" Cutout dimension corresponds to common hole saw size. |
Download PDF Spec (English)Share your knowledge of this product. Be the first to write a review »
