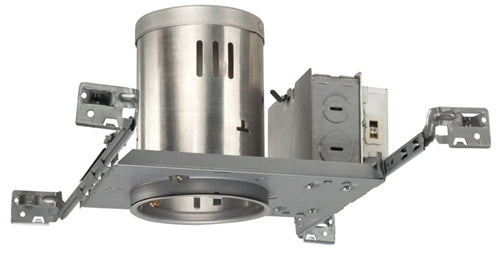

Juno Recessed Lighting PL413EU 4" Fluorescent 13W New Construction Housing with 120V HPF Electronic Ballast

Description

PL Housing design for use in non-insulated areas. If installed where insulation is present, the insulation must be pulled back 3” from all sides of the PL housing.

Features & Benefits

• 4" New Construction Housing
• Energy Star® qualified
• 120V HPF rapid start electronic FCC Class B ballast with end-of-life lamp protection
• Fixed mounted socket attaches to top of housing
• Fully assembled housing
• Pre-wired junction box provided with (5) 1⁄2” and (1) 3⁄4” knockouts, (4) Non-metallic sheathed cable connectors and ground wire, UL and C-UL Listed for through-branch wiring, maximum (8) No. 12 AWG 90° C branch circuit conductors (4 in, 4 out)
• One 13W triple tube (4-pin) CFL lamp

Lamp	One 13W Triple Tube (4-pin) CFL lamp.
Socket	Fixed mounted socket attaches to top of housing.
Ballast	120V thru 277V HPF Rapid Start Electronic with end-of-life lamp protection UL listed/CSA certified
Labels	UL listed for through-branch wiring and damp locations Union made UL and C-UL Listed Trims 11, 12, 4101 and 4102 are wet location approved for covered ceiling applications.

Compatible Trims Selection

Juno 11-WH *	Drop Opal
Juno 13-WH	2” Pinhole with Integral Shield
Juno 14B-WH	Black Baffle
Juno 14B-SC	Black Baffle
Juno 14B-ABZ	Black Baffle
Juno 14B-BL	Black Baffle
Juno 14W-WH	White Baffle
Juno 17CLI-WH	Cone - Clear Low Iridescent Alzak®
Juno 17G-WH	Cone - Gold Alzak®
Juno 17B-WH	Cone - Black Alzak®
Juno 17PT-SC	Cone - Pewter Alzak®
Juno 17W-WH	Cone - Gloss White
Juno 17HZ-WH	Cone - Haze
Juno 17WHZ-WH	Cone - Wheat Haze
Juno 17WHZ-ABZ	Cone - Wheat Haze
Juno 170CLI-WH	Cone - Clear Low Iridescent Alzak®
Juno 170HZ-WH	Cone - Haze
Juno 170WHZ-WH	Cone - Wheat Haze Optimized for CFL
Juno 140B-WH	Black Baffle
Juno 140W-WH	White Baffle Optimized for CFL
Juno 12W-WH *	Shower Trim, frosted perimter lens
Juno 12W-SC *	Shower Trim, frosted perimter lens
Juno 12W-ABZ *	Shower Trim, frosted perimter lens
Juno 4101-WH *	Beveled Dome Shower
Juno 4101-SC *	Beveled Dome Shower
Juno 4101-ABZ *	Beveled Dome Shower
Juno 4102-WH *	Beveled Shower
Juno 4102-SC *	Beveled Shower
Juno 4102-ABZ *	Beveled Shower
Juno 4103FROST-WH	Beveled Cylinder
Juno 4103FROST-SC	Beveled Cylinder
Juno 4104HZ-SC	Beveled Cone
Juno 4104WHZ-ABZ	Beveled Cone
Juno 4150MESH-SC	Cylinder

Trim Size: 5” O.D.
Trim Finish: ABZ - Classic Aged Bronze, BL -Black, SC - Satin Chrome, WH - White.
* UL Listed for use in wet location
