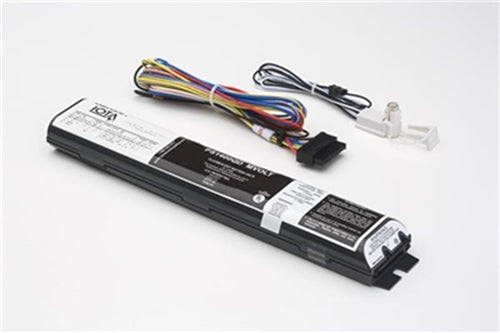

Juno Iota PS1400QD MVOLT M8 Emergency Fluorescent Battery Pack
Juno Iota PS1400QD MVOLT M8 Emergency Fluorescent Battery Pack
Regular price
Price:
$273.08
Regular price
Price:
Sale price
$273.08
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE
Specification-grade emergency ballast operates one or two lamps (4' or shorter) or one 8' lamp. Factory or field installed within fluorescent fixture ballast channel. Upon interruption of normal power battery pack automatically strikes and operates lamps at reduced light output, providing
INTENDED USE
Specification-grade emergency ballast operates one or two lamps (4' or shorter) or one 8' lamp. Factory or field installed within fluorescent fixture ballast channel. Upon interruption of normal power battery pack automatically strikes and operates lamps at reduced light output, providing
glare-free illumination for 90 minutes.
CONSTRUCTION
Durable thermoplastic/metal housing resists impact, scratches, and corrosion.
UL-94V-0 flame rating.
Reduced-profile footprint fits in the tightest applications.
Polarized quick-connect pilot light/test switch assembly simplifies installation.
Pilot light and test switch provide visual and manual means of monitoring system operation.
U.S. Patent No. 6,522,147; 5,814,971; 6,577,136; D550,154.
PERFORMANCE
Lamp selector switch optimizes single or dual lamp performance.
Compatible with instant start, rapid start, and slimline ballasts for 90 minutes emergency operation.
See compatibility chart on page 2.
ELECTRICAL
Multi-voltage input capability (120V-277V; 50-60 Hz).
Constant current-type charger. Input circuit provides high efficiency and reliable operation.
High-efficiency push-pull inverter is the most effective method of converting DC power to AC power.
It provides maximum light output, battery life and reliability.
BATTERY
Sealed, maintenance-free, high-temperature nickel-cadmium battery. Automatic battery recharge after 90-minute discharge. Fully charged after 24 hours.
INSTALLATION
Patented Quick-Disconnect connector system allows for quick and easy replacements at end of life without rewiring.
Mounts concealed within fixture wireway for clean appearance and protection against vandalism; or mounts on outside of fixture housing if internal space is limited. Two 1/2" holes in fixture channel permit mounting of test switch/pilot light behind fixture lens.
External mounting requires a remote mounting enclosure (ELA PSRME).

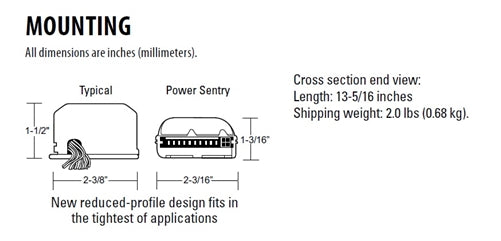

Compact size (13-5/16" L x 2-3/16" W x 1-3/16" H) fits in a variety of fluorescent fixtures: troffers, volumetric recessed, industrials, commercials and strips.
Unit wires two ways: on night light circuit (permanently energized) or on switchable circuit (unswitched circuit to battery charger and switched circuit to the fixture ballast). Unit will strike normally off lamp.
Unit mounting centers are identical to a standard ballast.
LISTINGS
UL listed. 0° - 50°C (32° - 122°F). Meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards.
Standard unit is UL approved for installation in sealed and gasketed fixtures.
See PS1400DW specification sheet for product UL approved for use in wet and damp location fixtures.
WARRANTY
5-year limited warranty.
CONSTRUCTION
Durable thermoplastic/metal housing resists impact, scratches, and corrosion.
UL-94V-0 flame rating.
Reduced-profile footprint fits in the tightest applications.
Polarized quick-connect pilot light/test switch assembly simplifies installation.
Pilot light and test switch provide visual and manual means of monitoring system operation.
U.S. Patent No. 6,522,147; 5,814,971; 6,577,136; D550,154.
PERFORMANCE
Lamp selector switch optimizes single or dual lamp performance.
Compatible with instant start, rapid start, and slimline ballasts for 90 minutes emergency operation.
See compatibility chart on page 2.
ELECTRICAL
Multi-voltage input capability (120V-277V; 50-60 Hz).
Constant current-type charger. Input circuit provides high efficiency and reliable operation.
High-efficiency push-pull inverter is the most effective method of converting DC power to AC power.
It provides maximum light output, battery life and reliability.
BATTERY
Sealed, maintenance-free, high-temperature nickel-cadmium battery. Automatic battery recharge after 90-minute discharge. Fully charged after 24 hours.
INSTALLATION
Patented Quick-Disconnect connector system allows for quick and easy replacements at end of life without rewiring.
Mounts concealed within fixture wireway for clean appearance and protection against vandalism; or mounts on outside of fixture housing if internal space is limited. Two 1/2" holes in fixture channel permit mounting of test switch/pilot light behind fixture lens.
External mounting requires a remote mounting enclosure (ELA PSRME).
Compact size (13-5/16" L x 2-3/16" W x 1-3/16" H) fits in a variety of fluorescent fixtures: troffers, volumetric recessed, industrials, commercials and strips.
Unit wires two ways: on night light circuit (permanently energized) or on switchable circuit (unswitched circuit to battery charger and switched circuit to the fixture ballast). Unit will strike normally off lamp.
Unit mounting centers are identical to a standard ballast.
LISTINGS
UL listed. 0° - 50°C (32° - 122°F). Meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards.
Standard unit is UL approved for installation in sealed and gasketed fixtures.
See PS1400DW specification sheet for product UL approved for use in wet and damp location fixtures.
WARRANTY
5-year limited warranty.
