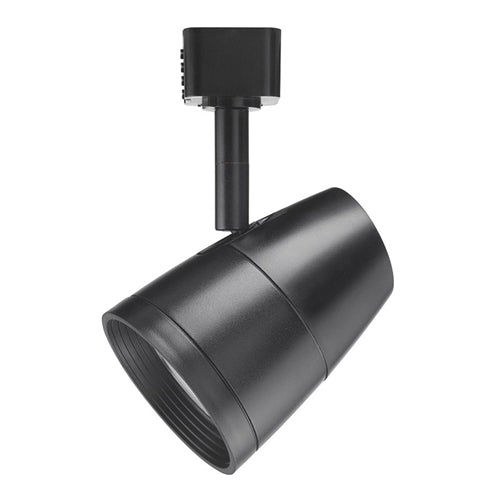

Juno R600L G2 27K 80CRI PDIM FL BL Track Lighting 10W LED Trac Lites Fixture, 2700K Color Temperature, 80 CRI, Phase Dimmable, Flood, Black Finish

Juno R600L G2 27K 80CRI PDIM FL BL Track Lighting 10W LED Trac Lites Fixture, 2700K Color Temperature, 80 CRI, Phase Dimmable, Flood, Black Finish

Price: $49.64
Price: $49.64

MODEL: Juno-R600L-G2-16493

Usually Ships in 3-5 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT DESCRIPTION
The R600L G2 Series 10W LED is an economical and affordable trac fixture, with a simple and timeless aesthetic. It approximates the light output and distribution of 50W MR16 halogen lamps, utilizing about 20% of the energy and having a rated life of 50,000 hours. Versions are available in 2700K, 3000K, 3500K and 4000K color temperatures with a minimum 80 CRI. Optional high CRI versions are available with a minimum 90 CRI or 97 CRI. The R600L G2 Series LED is available in spot, narrow flood and flood beam distributions which can be achieved with interchangeable precision-molded custom optics. It is compatible with Juno Trac-Lites and Trac-Master trac and system components.

PRODUCT SPECIFICATIONS
Construction
  • Die cast aluminum heat sink provides outstanding thermal management of LED, yielding 70% average lumen maintenance at 50,000 hours of operation
  • Simple, timeless design complements any decor
  • Available in white, black, bronze and silver finishes.
LED
  • High performance LED array provides outstanding reliability, performance and color quality/consistency
  • 2700K, 3000K, 3500K or 4000K white phosphor high performance LEDs
  • Chromaticity range within a 3-step MacAdam Ellipse
  • Exceptional 80 CRI minimum on standard product
  • Optional high CRI versions offer 90 CRI or 97 CRI minimum.
Driver
  • Integrated into fixture housing behind LED light engine to minimize overall fixture footprint
  • Insulating air gap between driver and LED light engine, plus thermal potting compound, optimizes thermal operation
  • Provides quiet operation with or without dimming
  • Dimmable using high quality, factory-approved dimmers - see R600LG2-DIM
  • Solid state electronic, Class 2 compliant
  • Integral overcurrent and short circuit protection
  • Designed for greater than 50,000 hour operating life
  • FCC Certified to Part 15 Class B EMI standards.
Optics
  • Proprietary, interchangeable thermoplastic optics available in three factory-configured beam spreads
  • Indicate specific beam spread desired or specify universal version which includes both narrow flood and flood lenses
  • Accessory optics also available to enable simple beam changes in the field.
Lensholder Bayonet mount lensholder facilitates optics changes in the field.

Adapter
  • Copper alloy contacts provide precise spring action - no arcing and will not take a set
  • True, positive electrical ground
  • On/off switch included
  • Patented embossed polarity arrows on bottom of adapter
  • Spring-loaded positive latch with embossed polarity arrows secures trac fixture to trac
  • Two-position power contact provided for two-circuit application.
Aiming
  • 350 degree horizontal coverage
  • 90 degree vertical aiming capability.
Labels
  • UL and C-UL Listed
  • ENERGY STAR certified
  • DesignLights Consortium (DLC) qualified product
  • 90CRI and 97CRI versions can be used to comply with California Title 24, Part 6 high efficacy LED light source requirements
  • Union made
  • Assembled in U.S.A.
Warranty 5-year limited warranty
