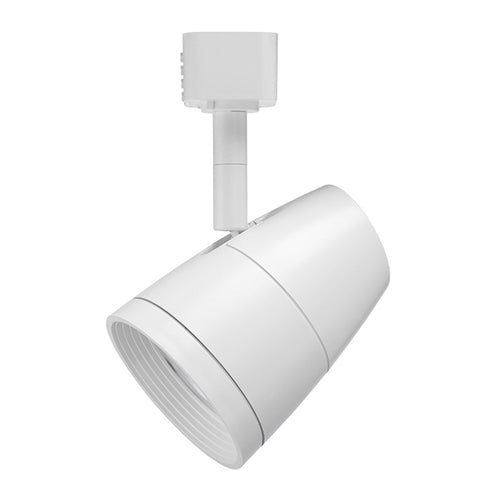

Juno Track Lighting R600L3KFWH (R600L 30K 80CRI PDIM FL WH) Trac Lites LED 10W 3000K Color Temperature, 80 CRI, Flood, White Color

PRODUCT DESCRIPTION
The R600L Series 10W LED is an economical and affordable trac fixture, with a simple and timeless aesthetic. It approximates the light output and distribution of 50W MR16 halogen lamps, utilizing about 20% of the energy and having a rated life of 50,000 hours. It is available in 2700K, 3000K, 3500K and 4000K color temperatures with a minimum 80 CRI. Optional high CRI versions are available with a minimum 90 CRI. The R600L Series LED is available in narrow flood and flood beam distributions which can be achieved with interchangeable precision-molded custom lenses. It is compatible with Juno Trac-Lites and Trac-Master trac and system components.

PRODUCT SPECIFICATIONS
Compatible Track Lighting System

• Trac-Master 120V One Circuit System
• Trac-Master 120V Two Circuit System
• Trac-Master 120V Tube System
• Trac-Master 120V Recessed System
• Trac-Lites One Circuit System

Construction

• Die cast aluminum heat sink provides outstanding thermal management of LED, yielding 70% average lumen maintenance at 50,000 hours of operation
• Simple, timeless design complements any decor
• Available in white, black, bronze and silver finishes.

LED

• High performance LED array provides outstanding reliability, performance and color quality/consistency
• 2700K, 3000K, 3500K or 4000K white phosphor high performance LEDs
• Chromaticity range within a 3-step MacAdam Ellipse
• Exceptional 80 CRI minimum on a standard product
• Optional high CRI versions offer 90 CRI minimum.

Driver

• Integrated into fixture housing behind LED light engine to minimize overall fixture footprint
• Insulating air gap between driver and LED light engine, plus thermal potting compound, optimizes thermal operation
• Provides quiet operation with or without dimming
• Dimmable using high quality dimmers approved by Juno - see Dimmer Compatibility
• Solid state electronic, Class 2 compliant
• Integral overcurrent and short circuit protection
• Designed for greater than 50,000 hour operating life
• FCC Certified to Part 15 Class B EMI standards.

Optics

• Proprietary, interchangeable thermoplastic lenses available in two factory-configured beam spreads
• Indicate specific beam spread desired or specify universal version which includes both lenses
• Accessory lenses also available to enable simple beam changes in the field.

Lensholder

• Bayonet mount lensholder facilitates lens changes in the field.

Adapter

• Copper alloy contacts provide precise spring action - no arcing and will not take a set
• True, positive electrical ground
• On/off switch included
• Patented embossed polarity arrows on bottom of adapter
• Spring-loaded positive latch with embossed polarity arrows secures trac fixture to trac
• “Pull-up” contact to up position for two-circuit application.

Aiming

• 350° horizontal coverage
• 90° vertical aiming capability.

Labels

• UL and C-UL Listed
• ENERGY STAR Qualified
• DesignLights Consortium Qualified.
