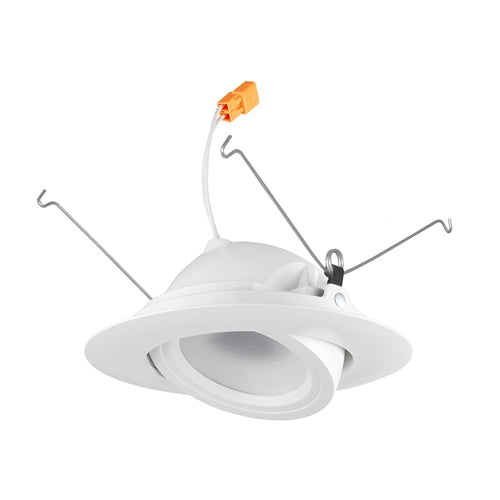

Juno Recessed Lighting 5RLA-927-6-N-WH 5" LED Retrofit Trim 2700K, 90 CRI 634 lumens, Narrow Flood, White Finish, Less Medium Base Socket Adapter

PRODUCT DESCRIPTION

• Energy efficient LED retrofit adjustable trim fits into standard 5” IC or non-IC recessed housings
• Replaces 65W incandescent lamp, producing over 650 lumens
• Adjustable gimbal design allows for up to 35° vertical aiming, rotates 359°
• Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers
• LED retrofit module is designed to provide 36,000 hours of life
• 5 year warranty

PRODUCT SPECIFICATIONS

Compatible Housings

• IC20-LEDT24
• IC20R-LEDT24
• IC20
• IC20R
• IC25
• IC25R
• TC20
• TC20R

LED

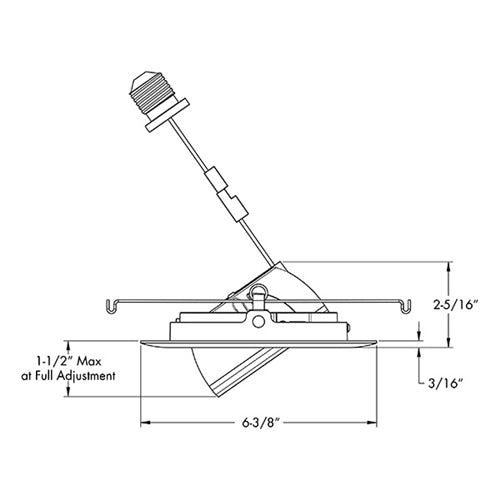

• Retrofit Adsjustable Trim Cast aluminum trim with white gimbal and flange
• All-in-one design where LED light engine mounts directly to trim for ease of installation into existing 5” recessed housings with medium base sockets
• Up to 35° vertical adjustment, rotates 359°
• Provided with torsion springs.

LED Light Engine

• LEDs are mounted directly to cast aluminum housing providing superior thermal management to ensure long life
• 2700K or 3000K LED color temperature
• 90 CRI minimum
• Accommodates 120 volts AC at 60Hz
• Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers
• Click here for a list of compatible dimmers.


Electrical Connections

• Trim features quick connect plug installed as standard for installation into IC20-LEDT24 and IC20R-LEDT24 housings with mating connector
• a medium base socket adapter whip sold separately.

Optical System

• Trims are offered with choice of 25° narrow flood or 70° wide flood beam patterns
• LED source concealed with lensed optic.


Life Rated for 36,000 hours at 70% lumen maintenance.

Labels

• ENERGY STAR Qualified
• Certified to the high efficacy requirements of California T24
• UL and cUL classified for use with most standard UL listed 5” recessed incandescent housings and Juno IC20-LEDT24 and IC20R-LEDT24; see PDF Spec for compatible housings
• Damp location.


Testing All reports are based on published industry procedures; field performance may differ from laboratory performance.
