Juno Recessed Lighting 6RLDG2-927-9-WWH Downlight 6" LED Retrofit Baffle Trim 2700K, 90 CRI, 975 Lumens, White Finish

PRODUCT DESCRIPTION

• Energy efficient LED retrofit module fits into standard 6” IC or non-IC recessed housings
• Replaces 75W incandescent lamp, producing over 975 lumens
• Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers
• LED retrofit module is designed to provide 36,000 hours of life
• 5 year warranty

PRODUCT SPECIFICATIONS

Compatible Housings

The 6RLD retrofit module is compatible with most 6” recessed housings measuring at least 4” high with an inside diameter between 5-3/4” and 7”. Removal of the housing socket plate or socket mounting bracket may be required in order for the trim to fit properly.

Compatible housings include, but not limited to:

• Juno housings: IC2, IC21, IC22, IC23 and TC2 Series
• Juno quick-connect LED housings: IC23-LEDT24 and IC23R-LEDT24
• VuLite® housings: V6IC and V6TC Series
• Lithonia® housings: L7X and LC6 Series
• Halo® housings: H7 Series, H25 Series
• Thomas® housings: PS1 and PS3 Series
• Capri® housings: CR1, PR1, QL6 Series, P9ASIC Series

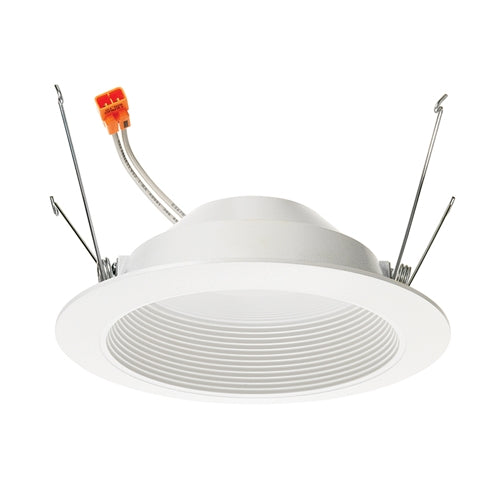

LED Downlight Retrofit Trim

• Cast aluminum trim with white baffle and flange
• All-in-one design where LED light engine mounts directly to trim for ease of installation into existing 6” recessed housings with medium base sockets
• Provided with torsion springs.


LED Light Engine

• LEDs are mounted directly to cast aluminum housing providing superior thermal management to ensure long life
• 2700K, 3000K, and 3500K LED color temperature
• 90 CRI minimum
• Accommodates 120 volts AC at 60Hz
• Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers
• For a list of compatible dimmers, see JUNORETROBASICS-DIM.


Electrical Connections

• Trim features quick connect plug installed as standard for installation into IC23-LEDT24 and IC23R-LEDT24 housings with mating connector
• a medium base socket adapter whip sold separately.

Trim

• Cast aluminum baffle trim with white finish
• Diffusing lens conceals the LEDs from direct view and provides uniform aperture luminance.


Life Rated for 36,000 hours at 70% lumen maintenance.

Labels

• ENERGY STAR® Qualified
• Certified to the high efficacy requirements of California T24
• UL and cUL classified for use with most standard UL listed 6” recessed incandescent housings and Juno IC23-LEDT24 and IC23R-LEDT24
• Damp location
• Suitable for wet locations (indoor covered ceilings).


Testing All reports are based on published industry procedures; field performance may differ from laboratory performance.
