Juno Recessed Lighting IC1JB 4" IC New Construction Junction Box Housing for Use in Fire Rated Ceilings
Juno Recessed Lighting IC1JB 4" IC New Construction Junction Box Housing for Use in Fire Rated Ceilings
Regular price
Price:
$40.50
Regular price
Price:
Sale price
$40.50
Unit price
per
MODEL: Juno-IC1JB-19992
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.
description
PRODUCT DESCRIPTION
- IC Air-Loc 4" Junction Box Housing for New Construction Applications
- May be installed in fire-rated ceiling assemblies per UL514A up to 2 hour fire rating
- Can be completely covered with insulation
- For use with Juno 4" LED Retrofit Trim Modules including 4RLD and 4RLA series
- Compatible with surface mount fixtures including Juno 6RLS and most Juno SlimForm fixtures with optional accessory bracket (order seperately).

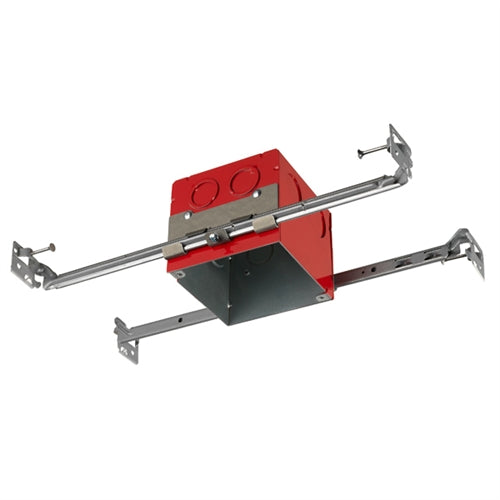

Junction Box Housing
- Designed for use in IC (insulated ceiling) or non-IC construction
- Rough-in section (junction box, bar hangers) fully assembled for ease of installation

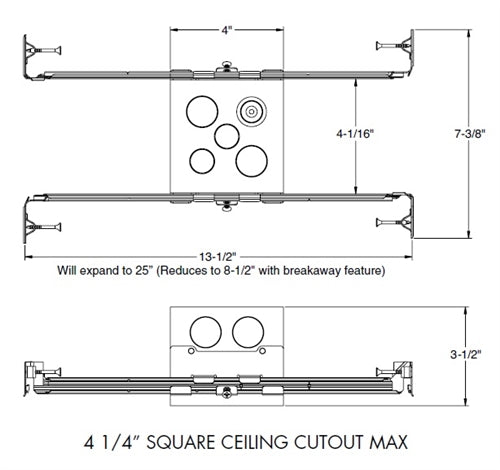

- Painted steel 3-1/2" deep 4" square junction box
- Provided with (4) 1/2"-3/4" concentric, (2) 1/2", (4) 3/4" and (2) 1" knockouts
- Listed for through-branch wiring, maximum 8 No. 12 AWG 90°C branch circuit conductors (4 in and 4 out).
Electrical Connections Junction box housing ships with quick connect whip for installation of 4" retrofit trim modules.
Real Nail 3 Bar Hangers- Telescoping Real Nail 3 system permits quick placement of housing anywhere within 24" O.C. joists or suspended ceilings
- Bars scored in two locations for fast, clean breaking, allowing housing installation in tight applications
- Captive bugle-headed ring shank nail for quick one-step installation and easy removal with claw hammer for fixture relocation
- Integral T-bar notch for suspended ceilings
- Locking set screw to lock junction box housing in position
- Design covered under US Patent D552,969.
Aesthetic Trim Selection Compatible with a selection of existing Juno retrofit trim modules and surface mount fixtures.
Labels
- ETL listed for U.S. and Canadian through-branch wiring, damp locations
- Union made
- cETLus
- Air-Loc.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
