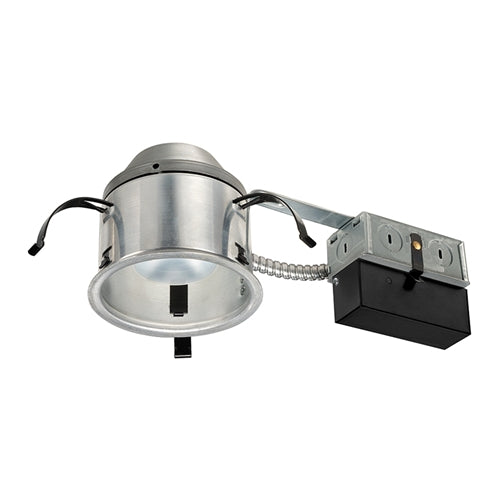

Juno Recessed Lighting IC1RLWDG4N-3K-1 4" IC WarmDim LED Remodel Housing 600 Lumens, 3000K Color Temperature, Dedicated Driver 120V

• Dedicated LED, Air-Loc remodel housing with patented WarmDim technology
• LED color temperature warms while dimming to emulate the dimming performance of traditional incandescent light sources
• Shallow housing allows for fit in 2 x 6 construction
• IC remodel housing for remodel application where back side of ceiling is not accessible
• Installs through an opening in the ceiling from below
• Secured in place by factory installed remodel springs
• Can be completely covered with insulation
• LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
• 5 year limited warranty on LED components.

• Proprietary patented micro processor controlled light engine emulates dimming performance of incandescent light source
• Replaceable light engine attached to high purity aluminum, thermally conductive housing provides superior heat transfer to ensure long life of the LEDs
• 3000K color temperature at full lumen output
• 90 CRI minimum throughout dimming range
• Design covered under Patent US 8,710,754.

• Compatible with wide selection of existing Juno trims
• See PDF Spec for trims selections

• Dedicated 120 volt driver
• Power factor > 0.9
• Dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
• For a list of compatible dimmers, click here
• Mounted inside housing for easy access from below ceiling.

• Rated for 50,000 hours at 70% lumen maintenance.

• ENERGY STAR Qualified when used with select trims
• Certified to the high efficacy requirements of California T24 with select trims
• UL listed for U.S. and Canada damp locations
• Union made
• UL and cUL.

• All reports are based on published industry procedures; field performance may differ from laboratory performance.

Download PDF Instruction Manual
