Juno Recessed Lighting IC926LED WD G4 09LM 30K 90CRI 120 FRPC 6" IC Slope WarmDim LED New Construction Recessed Housing, 900 Lumens, 3000K Color Temperature, Dedicated Driver 120V
Juno Recessed Lighting IC926LED WD G4 09LM 30K 90CRI 120 FRPC 6" IC Slope WarmDim LED New Construction Recessed Housing, 900 Lumens, 3000K Color Temperature, Dedicated Driver 120V
Regular price
Price:
$226.82
Regular price
Price:
Sale price
$226.82
Unit price
per
MODEL: Juno-IC926LED-1417
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.
description
PRODUCT DESCRIPTION
PRODUCT SPECIFICATIONS
Standard Slope Pitch

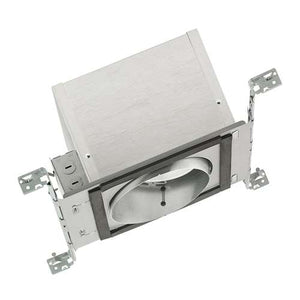

- Dedicated LED, Air-Loc sealed slope ceiling new construction housing with patented WarmDim technology
- IC rated construction housing can be completely covered with insulation
- Fully sealed housing stops infiltration and exfiltration of air, reducing heating and air cooling costs without the use of additional gaskets
- LED housing is designed to provide 50,000 hours of life and is compatible with standard Juno trims
- 5 year limited warranty on LED components.
PRODUCT SPECIFICATIONS
Standard Slope Pitch
- 2/12 to 6/12 pitch (9 Degree to 27 Degree)
- Proprietary patented micro processor controlled light engine emulates dimming performance of incandescent light source
- Extruded heat sink and cast aluminum slider plate integrated directly with housing provides superior thermal management to ensure the long life of the LED
- Replaceable light engine mounts directly to slider plate and incorporates the latest generation, high lumen output LED array
- 3000K color temperature at full lumen output
- 90 CRI minimum throughout dimming range
- Design covered under patent US 8,710,754.
- Compatible with a selection of existing Juno trims
- See PDF spec for trim selection.
- Choice of dedicated 120 volt driver or universal voltage driver that accommodates input voltages from 120-277 volts AC at 50-60Hz
- Power factor > 0.9 at 120V input
- 120 volt only driver dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
- Universal voltage driver is dimmable with the use of most 0-10V wall dimmers
- For a list of compatible dimmers, click here
- Mounted inside housing on a removable J-box cover for ease of maintenance.
- Rated for 50,000 hours at 70% lumen maintenance.
- ENERGY STAR Qualified when used with select baffle and cone trims
- UL listed for U.S. and Canada through-branch wiring, damp locations
- Union made
- UL and cUL listed.
- All reports are based on published industry procedures; field performance may differ from laboratory performance.
