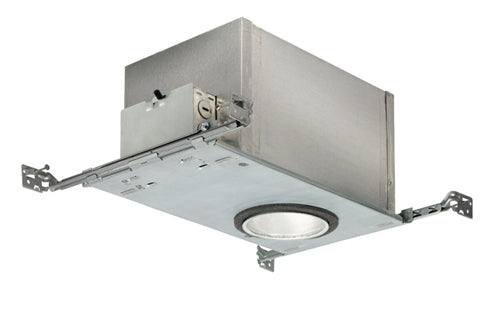

Juno Recessed Lighting ICPL418E (ICPL4 18W E) 4" Fluorescent 18W IC type Housing with 120V HPF Electronic Ballast

Description

IC rated Air-Loc, energy efficient vertical CFL remodel housing for remodel applications where backside of ceiling is not accessible. Can be completely covered with insulation. When use with supplied ALG kit, stops infiltration and exfiltration of air, reducing heating and air cooling costs

Features & Benefits

• 4” Housing
• California Title 24 compliant
• 120V HPF rapid start electronic FCC Class B ballast with end-of-life lamp protection
• Ballast is mounted to the inside of the housing on a removable J-box cover for ease of maintenance
• Fixed mounted socket attaches to top of housing

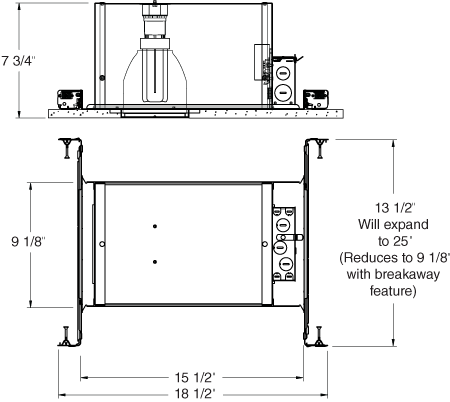

• Vertically adjustable to accommodate up to a 1” ceiling thickness
• Real Nail® 3 bar hangers: telescoping system with pre-installed removable nail for easy repositioning of housing in joist construction. Integral T-bar mounting feature for secure installation in suspended ceilings. Patented breakaway bars for tight joist spacing. Bar hangers may be re-positioned 90°. Curved foot facilitates alignment with joist bottom. Quick-Loc slot and oversized set screw lock fixture in position
• Fully assembled housing
• Pre-wired junction box with (6) 1/2” and (1) 3/4” knockouts with pryout slots, (4) non-metallic sheathed cable connectors, and ground wire
• UL and cUL Listed for through-branch wiring, maximum (6) #12 AWG conductors (3 in, 3 out)
• Shadow-free, knife-edge trim design blends smoothly into the ceiling and allows architectural continuity with Aculux® trims
• 2 year warranty
• One 18W triple tube (4-pin) CFL lamp

Lamp	One 18W Triple Tube (4-pin) CFL lamp.
Socket	Fixed mounted socket attaches to top of housing.
Ballast	120V HPF Rapid Start Electronic with end-of-life lamp protection UL listed/CSA certified Mounted inside housing on a removable J-box cover for ease of maintenance.
Trims	Trim gasket provided with housing.
Labels	Energy Star qualified UL listed for through-branch wiring and damp locations Meets Washington State Air Tight Requirements, IECC Complies with FCC Part 18 consumer use limits Product mechanically protected against improper use of lamps Union made UL and C-UL Listed Complies with California’s Title 24 energy code Trims 11, 12, 4101 and 4102 are wet location approved for covered ceiling applications.

Compatible Trims Selection

Juno 11-WH *	Drop Opal
Juno 13-WH	2” Pinhole with Integral Shield
Juno 14B-WH	Black Baffle
Juno 14B-SC	Black Baffle
Juno 14B-ABZ	Black Baffle
Juno 14B-BL	Black Baffle
Juno 14W-WH	White Baffle
Juno 17CLI-WH	Cone - Clear Low Iridescent Alzak®
Juno 17G-WH	Cone - Gold Alzak®
Juno 17B-WH	Cone - Black Alzak®
Juno 17PT-SC	Cone - Pewter Alzak®
Juno 17W-WH	Cone - Gloss White
Juno 17HZ-WH	Cone - Haze
Juno 17WHZ-WH	Cone - Wheat Haze
Juno 17WHZ-ABZ	Cone - Wheat Haze
Juno 170CLI-WH	Cone - Clear Low Iridescent Alzak®
Juno 170HZ-WH	Cone - Haze
Juno 170WHZ-WH	Cone - Wheat Haze Optimized for CFL
Juno 140B-WH	Black Baffle
Juno 140W-WH	White Baffle Optimized for CFL
Juno 12W-WH *	Shower Trim, frosted perimter lens
Juno 12W-SC *	Shower Trim, frosted perimter lens
Juno 12W-ABZ *	Shower Trim, frosted perimter lens
Juno 4101-WH *	Beveled Dome Shower
Juno 4101-SC *	Beveled Dome Shower
Juno 4101-ABZ *	Beveled Dome Shower
Juno 4102-WH *	Beveled Shower
Juno 4102-SC *	Beveled Shower
Juno 4102-ABZ *	Beveled Shower
Juno 4103FROST-WH	Beveled Cylinder
Juno 4103FROST-SC	Beveled Cylinder
Juno 4104HZ-SC	Beveled Cone
Juno 4104WHZ-ABZ	Beveled Cone
Juno 4150MESH-SC	Cylinder

Trim Size: 5” O.D.
Trim Finish: ABZ - Classic Aged Bronze, BL -Black, SC - Satin Chrome, WH - White.
* UL Listed for use in wet location
