PRODUCT DESCRIPTION

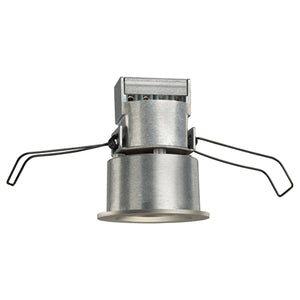

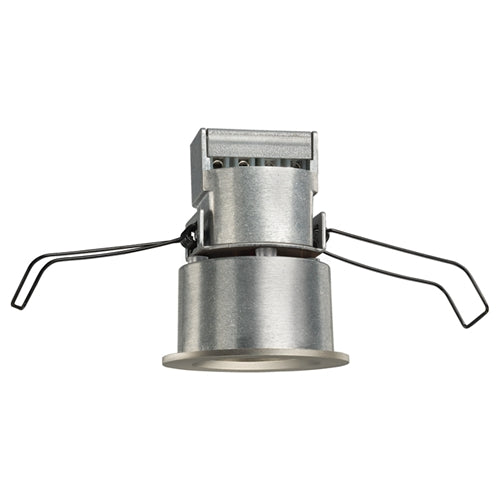

LED Light Engine
ORDERING INFORMATION

- The MD1LW mini LED recessed downlight is for use in wet locations and is IC rated for insulated or non-insulated applications
- Sleek, compact form factor provides direct accent lighting with low glare optic system that approximates the light output and distribution of 20W halogen lamps
- Ideal for both residential and commercial wet location applications including bathrooms and eave lighting
- Remote mount Class 2 120V to 12V AC electronic or magnetic transformer required
- Designed to provide 50,000 hours of life
- 5 year limited warranty on LED components.
LED Light Engine
- High performance, low power LEDs provide outstanding reliability, performance and color quality/consistency
- 2700K, 3000K, 3500K or 4100K color temperatures available
- 80 CRI minimum.
- Fixtures are offered with a choice of spot, narrow flood or flood beam patterns
- LED source concealed with lensed optic is deeply regressed into an internal reflector to produce a low glare system
- Reflectors finished to match trim ring color for uniform appearance
- Field replacement of optical lenses is NOT recommended.
- Sold separately
- Requires remote mount Class 2, 120V to 12V AC electronic or magnetic transformer for operation
- Juno TL602E electronic transformer and TL576 magnetic transformer are designed specifically for use with these fixtures.
- May be dimmed with dimmers tested and qualified by Juno for use with TL602E and TL576 – see transformer specifications for compatible dimmers
- Color temperature remains constant over dimming range
- Consult factory for additional information.
- Rated for 50,000 hours at 70% lumen maintenance.
- UL Listed for indoor damp locations and daisy chaining
- Union made
- UL and cUL listed
- RoHS compliant.
- All reports are based on published industry procedures; field performance may differ from laboratory performance.
