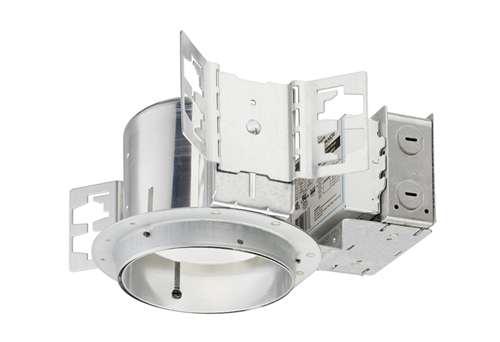

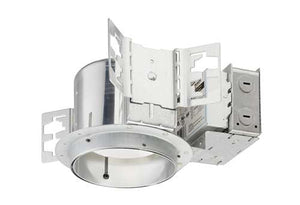

Juno Recessed Lighting TC20LED G4 20LM 30K 90CRI MVOLT ZT 5" TC-Rated LED New Construction, 2000 Lumens, 3000K Color Temp, 120-277V

PRODUCT DESCRIPTION

• Dedicated LED new construction housing with integral light engine
• Shallow housing allows for fit in 2 x 6 construction
• TC housing design for use in noninsulated areas
• If installed where insulation is present, the insulation must be pulled back 3? from all sides of the TC housing
• LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
• 5 year limited warranty on LED components.

PRODUCT SPECIFICATIONS

LED Light Engine

• LED array integrated to one piece high purity aluminum, thermally conductive housing provides uninterrupted heat transfer to ensure
  long life of the LED
• Replaceable light engine mounts directly to housing and incorporates the latest generation, high lumen output LED array
• LEDs are binned within a 3-Step MacAdam Ellipse exceeding ENERGY STAR requirements yielding superior fixture to fixture color uniformity
• 2700K, 3000K, 3500K or 4100K color temperatures available
• 90 CRI minimum.


Optical System

• Computer-optimized reflector design with high reflectance white finish coupled with a high transmission diffusing lens conceals the LEDs and produces uniform aperture luminance
• Deep regression of lens produces a low glare, efficient system that can produce over 2000 lumens with select trims (see PDF Spec on page 2 for details) using 26W*
• Wide flood distribution shipped as standard with optional optic accessories available and sold separately.


Aesthetic Trim Selections

• Compatible with wide selection of existing Juno trims
• See PDF Spec for trim selection


LED Driver

• Universal voltage driver that accommodates input voltage from 120-277 volts AC at 50/60Hz is standard and is dimmable with the use of
  most 0-10V dimmers
• Power factor > 0.9 at 120V input
• Optional Lutron Hi-Lume A-Series driver accommodates 120-277 volts AC at 50/60Hz
• Mounted between the j-box and housing for easy access and cool operation
• For a list of compatible dimmers, see JUNOTCLED-DIM.


Emergency Battery Option

• Battery factory assembled to housing with remote mounted test switch included
• Drives LED array for 90 minutes to meet Life Safety Code (NFPA-LSC), National Electrical Code (NEC) and UL requirements
• Provides 40% light output in emergency mode.


Life Rated for 50,000 hours at 70% lumen maintenance.

Labels

• ENERGY STAR Qualified when used with select baffle and cone trims
• UL listed for U.S. and Canada through-branch wiring, damp locations
• Union made
• UL and cUL listed.


Testing All reports are based on published industry procedures; field performance may differ from laboratory performance.
