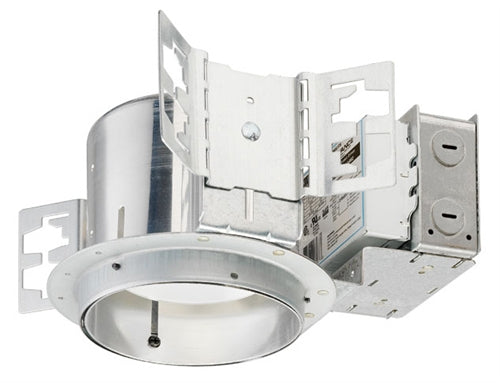

Juno Recessed Lighting TC920LEDG3-27K-U 5" LED Housing 900 Lumens, 2700K Color Temperature, Universal Driver 120-277V

Dedicated LED new construction housing with integral light engine

• Shallow housing allows for fit in 2 x 6 construction
• TC housing design for use in non-insulated areas
• If installed where insulation is present, the insulation must be pulled back 3” from all sides of the TC housing
• LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
• 5 year limited warranty on LED components.

PRODUCT SPECIFICATIONS

LED Light Engine LED array integrated to one piece high purity aluminum, thermally conductive housing provides uninterrupted heat transfer to ensure long life of the LED

• Replaceable light engine mounts directly to housing and incorporates the latest generation, high lumen output LED array
• LEDs are binned to standards that exceed ENERGY STAR® requirements yielding superior fixture to fixture color uniformity
• 2700K, 3000K, 3500K or 4100K color temperatures available
• 83 CRI typical.


Optical System Computer-optimized reflector design with high reflectance white finish coupled with a high transmission diffusing lens conceals the LEDs and produces uniform aperture luminance

• Deep regression of lens produces a low glare, efficient system that can produce over 900 lumens with select trims using less than 18W
• Wide flood distribution shipped as standard with optional optic accessories available and sold separately.


Aesthetic Trim Selections Compatible with wide selection of existing Juno trims. Shadow free, knife edge design blends seamlessly into ceiling.

LED Driver Universal voltage driver that accommodates input voltage from 120-277 volts AC at 50/60Hz is standard and is dimmable with the use of most 0-10V dimmers

• Power factor > 0.9 at 120V input
• Optional Lutron Hi-Lume® A-Series driver accommodates 120-277 volts AC at 50/60Hz
• Mounted between the j-box and housing for easy access and cool operation


Emergency Battery Option Battery factory assembled to housing with remote mounted test switch included

• Drives LED array for 90 minutes to meet Life Safety Code (NFPA-LSC), National Electrical Code (NEC) and UL requirements
• Provides 50% light output in emergency mode.


Life Rated for 50,000 hours at 70% lumen maintenance.

Labels ENERGY STAR® Qualified to luminaires V1.1 requirements when used with select baffle and cone trims

• Certified to the high efficiency requirements of California T24-2008 with select trims
• UL listed for U.S. and Canada through-branch wiring, damp locations
• Union made
• UL and cUL listed.


Testing All reports are based on published industry procedures; field performance may differ from laboratory performance. Product specifications subject to change without notice.
