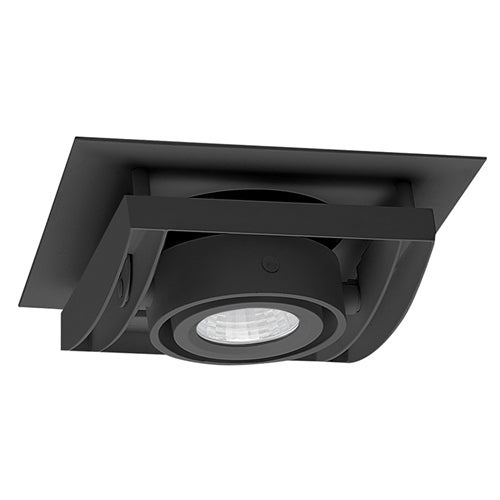

Juno Recessed Lighting XR16101BL 4" Low Voltage AVIO Square Gimbal Ring Trim, Black Trim
Juno Recessed Lighting XR16101BL 4" Low Voltage AVIO Square Gimbal Ring Trim, Black Trim
Regular price
Price:
$135.09
Regular price
Price:
Sale price
$135.09
Unit price
per
MODEL: Juno-XR16101BL
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
Product Specification
Housing/Lamp Compatibility
Housing/Lamp Compatibility
- IC44N/IC44W/IC44S/TC44/TC44V/TC44S/TC44R: 50W MR16
- TC47/TC47V: 75W MR16
- Glass lens included with each lampholder
- Can accept up to two accessories simultaneously - see PDF spec for details.
- Ceramic bi-pin.
- 45˚ vertical aiming capability in all directions
- Each lampholder is individually aimable.
- 120VAC input voltage standard
- 277VAC input voltage optional
- 12V thermally protected magnetic transformer(s)
- One transformer may be used to operate up to 3 lamps
- Access cover enables simple transformer servicing from either above or below ceiling
- Dimmable using dimmer specifically designed for use with magnetic transformer.
- Precision, one-piece die-cast aluminum grid frame offers premium, consistent aesthetics
- Durable die-cast aluminum concentric gimbal rings provides optimum adjustability
- Attaches to housing using torsion springs.
- Supplied with multi-lamp units only
- 22 gauge die-formed steel with black baked enamel finish
- Electrical connections can be made from below the ceiling in an internal wireway or from above the ceiling through a wireway access cover.
- Mounting brackets have 2.5” vertical adjustment and accept proprietary Tru-Lock bar hangers, 1 1/2” C-channel and flat linear bars (ordered as accessories) or 1/2” EMT, 3/4” and 1 1/2” C-channel (by others)
- One-piece Tru-Lock bar hangers have integral T-bar locking screws and alignment notches for locating and locking fixture in the center or 1/4 tile increments.
- U.L. listed for through-branch wiring, damp locations, and IP
- Product thermally protected against improper use of lamps or insulation
- Union made
- CSA certified.
