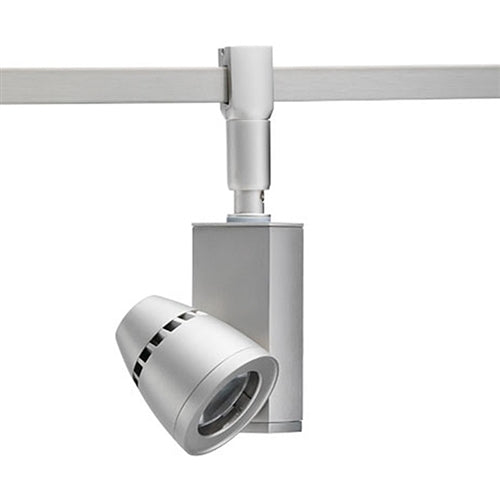

Juno MonoLine Track Lighting SP261MLLG327WSTN Conix II LED 16W 2700K Color Temperature, 85 CRI, Wide Flood, Satin Nickel Finish

Juno MonoLine Track Lighting SP261MLLG327WSTN Conix II LED 16W 2700K Color Temperature, 85 CRI, Wide Flood, Satin Nickel Finish

Price: $267.75
Price: $267.75

MODEL: Juno-SP261MLLG327WSTN

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT DESCRIPTION
The sleek sculpted aesthetic of the Conix II LED fixtures is unparalleled in the industry. Their elegance is carried through the entire design for a fresh, contemporary appeal. The 16W Conix II LED fixtures have integral TIR optics which enable uniform spot, flood or narrow flood distributions to be achieved. These lampholders have an integral, bayonet-mounted accessory holder that accommodates one accessory if desired. The 16W Conix II LED can deliver up to 1079 lumens, utilizing less than 1/3 of the energy of halogen equivalents and having a rated life of 50,000 hours. Available in 2700K, 3000K, 3500K and 4000K color temperatures, the white-light 16W Conix II LED may be specified in standard or high CRI versions.

PRODUCT SPECIFICATIONS
Construction
  • All-metal housing and custom designed concealed heat sink provides outstanding thermal management, yielding 70% average lumen maintenance at 50,000 hours of operation
  • Passively-cooled design – no moving parts to break or wear-out
  • Extruded aluminum vertically mounted LED driver housing
  • Concealed fixture wiring for a clean aesthetic
  • Fashionable, elegant design complements any decor
  • Available in a rich Satin Nickel plated finish.
LED
  • High performance LED array provides outstanding reliability, performance and color quality/consistency
  • 2700K, 3000K, 3500K or 4000K white phosphor high performance LEDs
  • Chromaticity range within a 3-step MacAdam Ellipse
  • Exceptional 85 CRI typical on a standard product
  • Optional high CRI 3000K version offers 93 CRI typical with a R9 value greater than 50.
Driver
  • Assembled in a side-mount vertical housing to minimize overall fixture footprint
  • Insulating air gap between driver and LED light engine optimizes thermal operation
  • Provides quiet operation with or without dimming
  • Dimmable using high quality reverse phase ELV dimmers approved by Juno - see T261LG3-DIM
  • Solid state electronic, Class 2 complian
  • Integral overcurrent and short circuit protection
  • Class B FCC Part 15 rated.
Optics
  • Interchangeable computer-designed custom TIR optics available in four factory-configured beam spreads
  • One TIR optic provided with fixture (as specified in catalog number)
  • Accessory optics available to enable beam changes in the field
  • Beam patterns can be altered as desired using a variety of available light control accessories.
Adapter
  • Patented Power Grab fixture adapter requires no tools and has no loose parts
  • Allows fixture to hang on track prior to securing adapter, enabling simple and precise fixture positioning
  • Nickel plated contacts for reliable power connections and no arcing.
Accessory Holder
  • Integral to fixture design
  • Die cast aluminum construction
  • Precision bayonet mounting
  • Accommodates one accessory if desired (except wide flood versions).
Aiming
  • 360° horizontal coverage
  • Greater than 90° vertical aiming capability.
Labels
  • UL and C-UL Listed
  • ENERGY STAR Qualified.
Warranty
  • Warranty period is 5 years from date of purchase
  • Standard Juno Lighting Group product guarantee terms and conditions apply.
Product specifications subject to change without notice.
