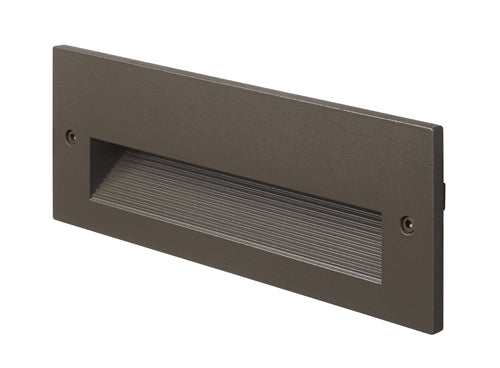

Juno Step Light 838LED-13-3K-BZ Outdoor 3000K LED Color Temperature, Bronze Trim

Juno Step Light 838LED-13-3K-BZ Outdoor 3000K LED Color Temperature, Bronze Trim

Price: $181.25
Price: $181.25

MODEL: Juno-838LED-13-3K-BZ

Usually Ships in 3-5 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

The Performance LED step light is rated for use in outdoor or indoor wall mount applications including concrete pour, brick masonry or drywall

  • May be used as LED retrofit kit for existing Juno PL115 outdoor rated step lights installed in application
  • Recessed housing is IC rated and can be completely covered with insulation
  • Back housing IC115LEDHSG must be ordered separately from power module trim for rough-in purposes
  • Designed to provide 50,000 hours of life
  • 5 year warranty.
Housing
3000K white phosphor array provides outstanding performance, color quality/consistency and reliability
85 CRI.
Power Module Trim
 Die cast aluminum housing painted white for durability
Gasket for water tight seal in wet locations provides IP65 rating with 838LED trim
Cover plate provided to protect housing interior during rough-in
(2) 1/2” conduit compression fittings provided for wiring
(1) conduit fitting plug included
Two brackets supplied for nailing unit to studs.
Life
 LED light engine and driver mounted directly to trim assembly for ease of wiring and installation into housing after rough-in.
LED Light Engine:
  • LED PCB utilizes 1 watt high lumen output LEDs binned to Energy Star standards
  • 3000K or 4100K color temperatures available.

LED Driver:

  • Non-dimmming driver accommodates input voltage of 120 volts AC at 50/60Hz
  • Power factor > 0.9 at 120V input
  • Driver is thermally protected and has integral overload and short circuit protection
  • Terminal connections provided as standard for easy removal.

Trim:

  • Available in textured white, black, bronze or silver corrosion resistant paint on cast aluminum
  • Fastens to housing with two allen head screws
  • Matte textured diffuser supplied with all trims.
Life
 Rated for 50,000 hours at 70% lumen maintenance.
Labels UL listed for wet locations, concrete pour approved
UL and cUL Listed, RoHS compliant
UL Listed as LED conversion retrofit kit for Juno PL115 outdoor rated step light
IP65 rated.
