Juno Step Light LMS-3K-H-WH Indoor LED, 2W 120V Dimmable Driver, 3000K Light Color, Hood Optic, White Textured

• The LMS Mini LED step light is designed for installation in indoor wall mount applications using standard junction boxes (not supplied)
• IC rated for direct contact with insulating materials
• Four distinct optics conceal LEDs and provide unique light distribution patterns

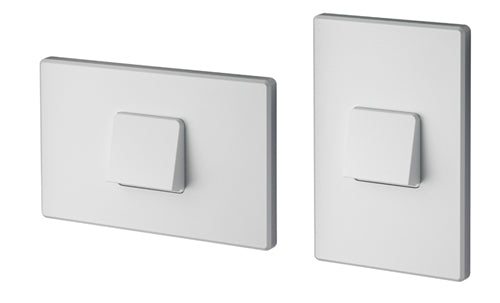

• Modular design allows fixture to be mounted in horizontal or vertical orientation
• Ideal for residential, theatrical, or commercial applications
• Designed to provide 50,000 hours of life
• 5 year warranty on LED components

Features & Benefits

• LED Light Engine Utilizes two 1-watt high lumen LEDs binned to Energy Star standards • 3000K or 4100K color temperatures are available • Mounted directly to aluminum heat sink for superior thermal management.
• Optics Available in hood, cutoff, louver, and marker optics to conceal LEDs, and provide four unique light distribution patterns • Fixture provided in vertical orientation from factory.
• Faceplates May be mounted in vertical (as provided from factory) or horizontal orientation • Fastens using 0.05 allen wrench provided with fixtures • Available in plated satin nickel or bronze and textured black or white finishes.
• LED Driver Accommodates an input voltage of 120 VAC at 60Hz • Power factor > 0.9 at 120V input • Driver is dimmable with the use of Juno qualified 120V electronic low voltage dimmers.
• Mounting Designed to mount directly in standard J-Boxes: 2” x 4” (2 1⁄8” minimum depth) or 4” x 4” (1 1⁄2” minimum depth) fitted with a single-gang plaster ring 5/8” minimum depth • Modular design allows fixture to be mounted in horizontal or vertical orientation • J-Boxes and plaster ring are not provided.
• Life Rated for 50,000 hours at 70% Lumen Maintenance.
• Labels UL listed for indoor damp locations and through-branch wiring, maximum 4 No. 12 AWG 75° C through branch circuit conductors for 2 x 4 junction box or maximum 8 No. 12 AWG 75° C through branch circuit conductors for 4 x 4 junction box • UL and cUL Listed, RoHS compliant.
