Home > Juno Lighting > Juno T1050L 27K 90CRI PDIM BL Track Lighting 12W LED Wall Wash, 1700 Lumens, 2700K, 90 CRI, Phase Dimmable, Black

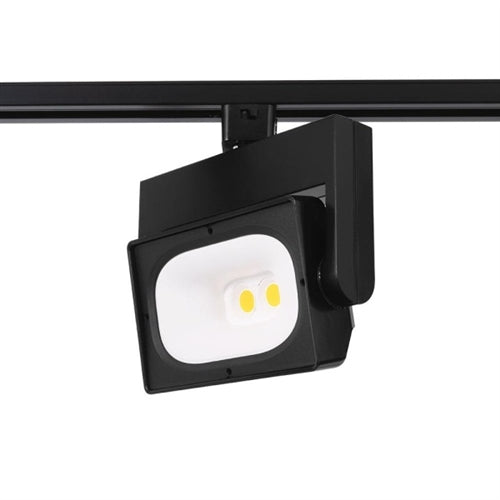

Juno T1050L 27K 90CRI PDIM BL Track Lighting 12W LED Wall Wash, 1700 Lumens, 2700K, 90 CRI, Phase Dimmable, Black
Juno T1050L 27K 90CRI PDIM BL Track Lighting 12W LED Wall Wash, 1700 Lumens, 2700K, 90 CRI, Phase Dimmable, Black
Regular price
Price:
$215.49
Regular price
Price:
Sale price
$215.49
Unit price
per
MODEL: Juno-T1050L-32650
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Housing
Housing
- Robust die cast aluminum construction
- Perfectly balanced design maintains consistent center of gravity, regardless of aiming
- Concealed wiring for a simplified, clean aesthetic
- Computer designed heat sink provides outstanding thermal management, yielding 70% average lumen maintenance at 50,000 hours of operation
- Available in white semi-gloss, black semi-gloss and silver metallic painted finishes.
- Two high-performance LEDs per fixture provide outstanding reliability, performance and color quality/consistency
- White phosphor high brightness LEDs in 2700K, 3000K, 3500K or 4000K color temperatures
- Chromaticity range within a 2-step MacAdam Ellipse
- Exceptional 80 CRI minimum on standard product
- Optional high CRI versions offer 90 CRI.
- Cleverly assembled in fixture yoke arm
- Insulating air gap between driver and LEDs optimizes thermal operation
- Solid state electronic with integral overcurrent and short circuit protection
- FCC Part 15 Class B rated at 120V.
- Standard 120V version is standard dimmable using various high quality dimmers approved by Juno - see T105xL-DIM.
- Patented, custom hyperbolic reflector creates a uniform, wide beam pattern and enables LEDs to be deeply regressed to minimize aperture brightness.
- 365˚ horizontal coverage
- 95˚ vertical aiming capability in either direction (190° total)
- Vertical aiming lock screws and aiming scales for precise, secure fixture aiming
- Lock screws require standard 1/16” hex wrench (included).
- Standard fixture is supplied without lens to deliver optimal photometric performance and to simplify accessory installation
- Clear Polycarbonate Lens or Diffusion Lens are available as factory-installed options (CPL or DIFF) or field-installed accessories (CGF RECT3 CLEAR or DIFF RECT3)
- Other lenses, including UV Filter (UVF RECT3), can also be factory-installed
- Other lenses available upon request
- Accessories attach to front bezel using four (4) Philips screws (included with accessory).
- Universally compatible with both Trac-Master 1-circuit or 2-circuit track, Trac-Lites track, monopoints and special mountings
- Also UL Recognized for use on ConTech LT Series track
- Copper alloy contacts provide precise spring action -- no arcing and will not take a set
- True, positive electrical ground
- On/off switch included
- Patented embossed polarity arrows on bottom of adapter
- Spring-loaded positive latch with embossed polarity arrows secures track fixture to track
- Two-position power contact provided for two-circuit application.
- UL and cUL Listed
- ENERGY STAR certified
- 120V versions are DesignLights Consortium Qualified
- Union made
- Assembled in U.S.A.
- 90CRI versions can be used to comply with California Title 24, Part 6 high efficacy LED light source requirements.
- This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR,
- DFARS and DOT regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
- 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
