Home > Juno Lighting > Juno T1058L HTYPE 30K 90CRI PDIM BL 45W LED Wall Wash, H-Type Track Adapter, 3000K, 90 CRI, Phase Dimmable, Black

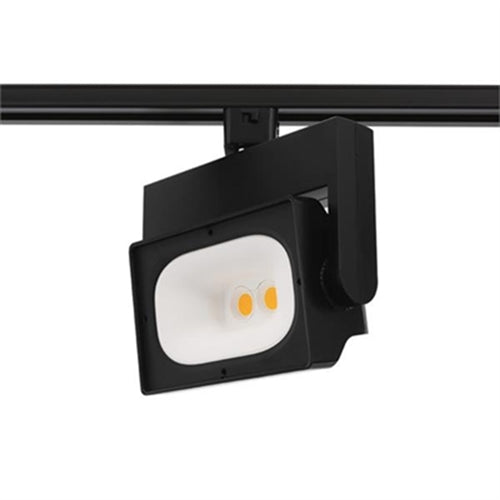

Juno T1058L HTYPE 30K 90CRI PDIM BL 45W LED Wall Wash, H-Type Track Adapter, 3000K, 90 CRI, Phase Dimmable, Black
Juno T1058L HTYPE 30K 90CRI PDIM BL 45W LED Wall Wash, H-Type Track Adapter, 3000K, 90 CRI, Phase Dimmable, Black
Regular price
Price:
$339.16
Regular price
Price:
Sale price
$339.16
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Housing
Housing
- Robust die cast aluminum construction
- Perfectly balanced design maintains consistent center of gravity, regardless of aiming
- Concealed wiring for a simplified, clean aesthetic
- Computer designed heat sink provides outstanding thermal management, yielding 70% average lumen maintenance at 50,000 hours of operation
- Available in white semi-gloss, black semi-gloss and silver metallic painted finishes.
- Two high-performance LEDs per fixture provide outstanding reliability, performance and color quality/consistency
- White phosphor high brightness LEDs in 2700K, 3000K, 3500K or 4000K color temperatures
- Chromaticity range within a 2-step MacAdam Ellipse
- Exceptional 80 CRI minimum on standard product
- Optional high CRI versions offer 90 CRI.
- Cleverly assembled in fixture yoke arm
- Insulating air gap between driver and LEDs optimizes thermal operation
- Solid state electronic with integral overcurrent and short circuit protection
- FCC Part 15 Class B rated at 120V.
- Standard 120V version is standard dimmable using various high quality dimmers approved by Juno - see T105xL-DIM.
- Patented, custom hyperbolic reflector creates a uniform, wide beam pattern and enables LEDs to be deeply regressed to minimize aperture brightness.
- 365 degrees horizontal coverage
- 95 degrees vertical aiming capability in either direction (190 degrees total)
- Vertical aiming lock screws and aiming scales for precise, secure fixture aiming
- Lock screws require standard 1/16" hex wrench (included).
- Standard fixture is supplied without lens to deliver optimal photometric performance and to simplify accessory installation
- Clear Polycarbonate Lens or Diffusion Lens are available as factory-installed options (CPL or DIFF) or field-installed accessories (CGF RECT3 CLEAR or DIFF RECT3)
- Other lenses, including UV Filter (UVF RECT3), can also be factory-installed
- Other lenses available upon request
- Accessories attach to front bezel using four (4) Philips screws (included with accessory).
- Universally compatible with both Trac-Master 1-circuit or 2-circuit track, Trac-Lites track, monopoints and special mountings
- Also UL Recognized for use on ConTech LT Series track
- Copper alloy contacts provide precise spring action -- no arcing and will not take a set
- True, positive electrical ground
- On/off switch included
- Patented embossed polarity arrows on bottom of adapter
- Spring-loaded positive latch with embossed polarity arrows secures track fixture to track
- Two-position power contact provided for two-circuit application.
- UL and cUL Listed
- ENERGY STAR certified
- 120V versions are DesignLights Consortium Qualified
- Union made
- Assembled in U.S.A.
- 90CRI versions can be used to comply with California Title 24, Part 6 high efficacy LED light source requirements.
- This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR,
- DFARS and DOT regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
- 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
