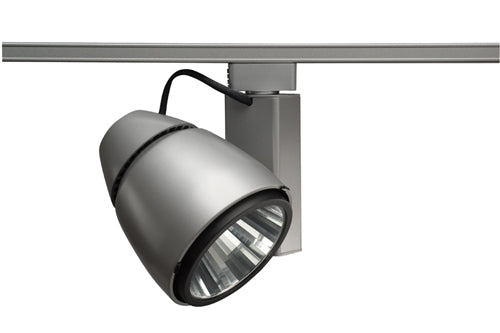

Juno Track Lighting T209LED-35K-SP-SL Trac Master Conix LED 35W, 3500K Color Temp, 8 degree Spot Lighting Fixture, Silver Finish
Juno Track Lighting T209LED-35K-SP-SL Trac Master Conix LED 35W, 3500K Color Temp, 8 degree Spot Lighting Fixture, Silver Finish
MODEL: Juno-T209LED-35K-SP-SL
Couldn't load pickup availability
description
Description
The sleek sculpted aesthetic of the Conix LED fixtures is unparalleled in the industry. Their elegance is carried through the entire design for a fresh, contemporary appeal. Conix LED fixtures have integral reflectors which enable uniform spot, flood or narrow flood distributions to be achieved. These lampholders have integral snap-in accessory holders that can accommodate one accessory in place of the clear glass lens provided. The Conix 35W LED delivers up to 1782 lumens, utilizing less than 1/3 of the energy of halogen equivalents and having a rated life of 50,000 hours. Available in 2700K, 3000K, 3500K and 4000K color temperatures, the white-light Conix LED is compatible with all Juno line voltage trac and monopoints.
| Construction | All-metal
housing and custom designed concealed heat sink provides outstanding
thermal management, yielding 70% average lumen maintenance at 50,000
hours of operation. Passively-cooled design – no moving parts to break or wear-out. Extruded aluminum vertically mounted LED driver housing. Fashionable, elegant design complements any decor. Available in white, black and silver painted finishes. |
| LED | Citizen LED array provides outstanding reliability, performance and color quality/consistency. 3-step MacAdam ellipse color binning. 2700K, 3000K, 3500K or 4000K white phosphor high performance LEDs. High CRI of 83 typical. |
| Driver | Assembled in a side-mount vertical housing to minimize overall fixture footprint. Solid state electronic, Class 2 compliant. Integral overcurrent and short circuit protection. Class B FCC Part 15 rated. |
| Dimming | Non-dimming and dimming fixture versions available. Dimming fixture versions may be dimmed with a wide variety of reverse phase electronic low voltage (ELV) dimmers approved by Juno. |
| Reflector | Precision designed custom reflector provides either spot, narrow flood or flood beam distributions. Faceted/dimpled reflector ensures a properly color-mixed beam. Accessory reflectors available to convert from one beam distribution to another in the field. |
| Accessory Holder | Integral to fixture design. Snap-in mounting. Accommodates one accessory in place of the clear glass lens provided. |
| Aiming | 360° horizontal coverage. Greater than 90° vertical aiming capability. |
| Labels | UL and C-UL Listed. ENERGY STAR® Qualified. DesignLights™ Consortium Qualified. |
| Warranty | Warranty period is 5 years from date of purchase |
Ordering Information
