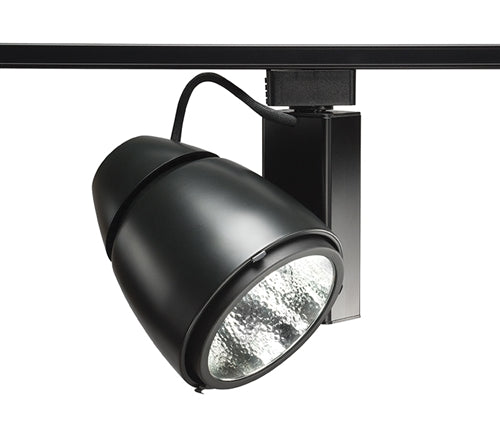

Juno Track Lighting T209LG2-4NBL Trac Master Conix LED 19W, 4000K Color Temperature, 80 CRI, Narrow Flood Beam Spread, Black Finish

PRODUCT DESCRIPTION
The sleek sculpted aesthetic of the Conix LED fixtures is unparalleled in the industry. Their elegance is carried through the entire design for a fresh, contemporary appeal. Conix LED fixtures have integral reflectors which enable uniform spot, flood or narrow flood distributions to be achieved. These lampholders have integral snap-in accessory holders that can accommodate one accessory in place of the clear glass lens provided. The Conix 19W LED delivers up to 1955 lumens, utilizing less than 1/3 of the energy of halogen equivalents and having a rated life of 50,000 hours. Available in 2700K, 3000K, 3500K and 4000K color temperatures; and 80 or 90 CRI, the white-light Conix LED is compatible with all Juno line voltage trac and monopoints

PRODUCT SPECIFICATIONS
Compatible Track Lighting System

• Trac-Master 120V One Circuit System
• Trac-Master 120V Two Circuit System
• Trac-Master 120V Tube System
• Trac-Master 120V Recessed System
• Trac-Lites One Circuit System

Construction

• All-metal housing and custom designed concealed heat sink provides outstanding thermal management, yielding 70% average lumen maintenance at 50,000 hours of operation
• Passively-cooled design – no moving parts to break or wear-out
• Extruded aluminum vertically mounted LED driver housing
• Fashionable, elegant design complements any decor

LED

• Citizen LED array provides outstanding reliability, performance and color quality/consistency
• 3-step MacAdam ellipse color binning

Driver

• Assembled in a side-mount vertical housing to minimize overall fixture footprint
• Solid state electronic, Class 2 compliant
• Integral overcurrent and short circuit protection
• Class B FCC Part 15 rated.

Dimming

• Dimmable using high quality phase dimmers approved by Juno - click here

Reflector

• Precision designed custom reflector provides either spot, narrow flood or flood beam distributions
• Faceted/dimpled reflector ensures a properly color-mixed beam
• Accessory reflectors available to convert from one beam distribution to another in the field.

Accessory Holder

• Integral to fixture design
• Snap-in mounting
• Accommodates one accessory in place of the clear glass lens provided.

Aiming

• 360° horizontal coverage
• Greater than 90° vertical aiming capability

Labels

• UL/cUL Listed; ENERGY STAR Qualified; DesignLights Consortium Qualified.

Warranty

• Warranty period is 5 years from date of purchase
• Standard Juno Lighting Group product guarantee terms and conditions apply

Product specifications subject to change without notice
