Home > Juno Lighting > Juno T258L G2 27K 90CRI PDIM WH Track Lighting Wall Wash Flood 20W LED 2567 Lumens, 2700K Color Temperature, 90CRI, White Finish

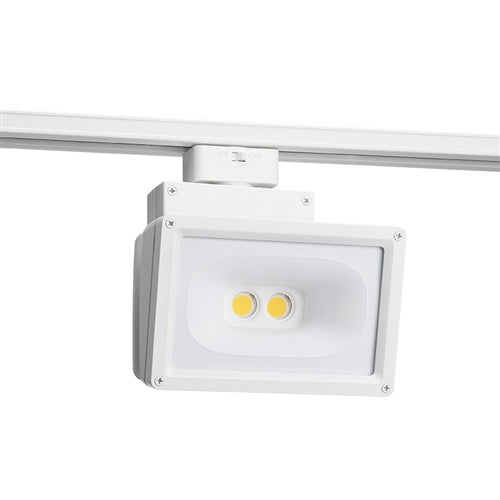

Juno T258L G2 27K 90CRI PDIM WH Track Lighting Wall Wash Flood 20W LED 2567 Lumens, 2700K Color Temperature, 90CRI, White Finish
Juno T258L G2 27K 90CRI PDIM WH Track Lighting Wall Wash Flood 20W LED 2567 Lumens, 2700K Color Temperature, 90CRI, White Finish
Regular price
Price:
$332.95
Regular price
Price:
Sale price
$332.95
Unit price
per
MODEL: Juno-T258L-14885
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a Large Quantity?
Request a quote
description
PRODUCT DESCRIPTION
The T258L LED wall wash/flood trac fixtures deliver a powerful and uniform punch of light, utilizing less energy than a comparable CMH fixture and offering up to 4 times the rated life. They are capable of delivering up to 2567 powerful lumens, yielding an efficacy of up to 128 lumens per watt. Employing a custom hyperbolic reflector, they provide a uniform, wide beam of light. Their unique, narrow profile enables them to fit nicely with accent spotlights on the trac. Their optimized thermal management design yields a maintenance-free 50,000 hours service life at 70% lumen maintenance. Available in 2700K, 3000K, 3500K and 4000K color temperatures, the white-light T258L LED wall wash/flood trac fixtures are compatible with Juno Trac-Master and Trac-Lites trac.
PRODUCT SPECIFICATIONS
Housing
Aiming
The T258L LED wall wash/flood trac fixtures deliver a powerful and uniform punch of light, utilizing less energy than a comparable CMH fixture and offering up to 4 times the rated life. They are capable of delivering up to 2567 powerful lumens, yielding an efficacy of up to 128 lumens per watt. Employing a custom hyperbolic reflector, they provide a uniform, wide beam of light. Their unique, narrow profile enables them to fit nicely with accent spotlights on the trac. Their optimized thermal management design yields a maintenance-free 50,000 hours service life at 70% lumen maintenance. Available in 2700K, 3000K, 3500K and 4000K color temperatures, the white-light T258L LED wall wash/flood trac fixtures are compatible with Juno Trac-Master and Trac-Lites trac.
PRODUCT SPECIFICATIONS
Housing
- Robust die cast aluminum construction
- Concealed wiring for a simplified, clean aesthetic
- Computer designed heat sink provides outstanding thermal management, yielding 70% average lumen maintenance at 50,000 hours of operation
- Available in white, black and silver painted finishes.
- Two high performance LEDs per fixture provide outstanding reliability, performance and color quality/consistency
- White phosphor high brightness LEDs in 2700K, 3000K, 3500K or 4000K color temperatures
- Exceptional 80 CRI minimum on standard product
- Optional high CRI versions offer 90 CRI or 97 CRI minimum.
- Cleverly assembled in a separate housing behind the LED housing to minimize overall fixture footprint
- Insulating air gap between drivers and LED light engine optimizes thermal operation
- Solid state electronic, Class 2 compliant
- Integral overcurrent and short circuit protection
- FCC Part 15 Class B rated.
- Standard 120V version is dimmable using high quality reverse phase ELV dimmers approved by Juno - see T258LG2-T259LG2-T260L-DIM.
Aiming
- 350˚ horizontal coverage
- 90˚ vertical aiming capability
- Concealed vertical aiming lock screw to secure fixture aiming.
- Compatible with Juno Trac-Master 1 or 2-circuit systems or Juno Trac-Lites system
- Copper alloy contacts provide precise spring action – no arcing and will not take a set
- True, positive electrical ground
- On /off switch included
- Patented embossed polarity arrows on bottom of adapter
- Spring-loaded positive latch with embossed polarity arrows secures trac light to trac
- Two-position power contact provided for two-circuit application.
Alternate TEK/HTEK Trac Adapter
Labels- Compatible with either Juno TEK or HTEK trac systems
- System specific and assembled to trac fixture
- Integrally polarized construction to prevent reverse installation – only allows insertion in proper orientation
- Rotary circuit selector enables simple switching between circuits
- Integral on/off switch enables individual fixtures to be switched for servicing.
- UL and cUL Listed
- ENERGY STAR certified.
Warranty 5-year limited warranty.
