Home > Juno Lighting > Juno T260L TEK 27K 97CRI PDIM SL Track Lighting Trac Master 55W LED Wall Wash Flood Light, Universal 120V Trac Adapter, 2700K Color Temperature, 97 CRI, Phase Dimmable, Silver Finish

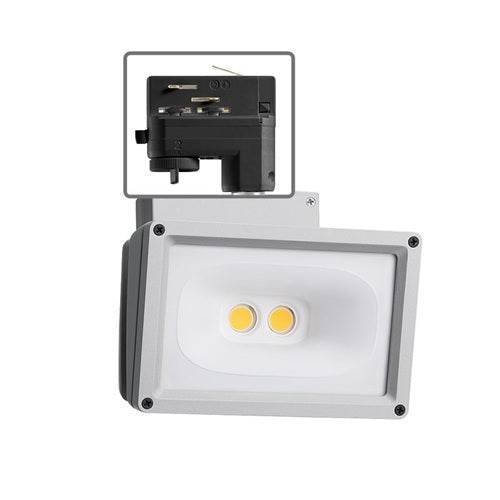

Juno T260L TEK 27K 97CRI PDIM SL Track Lighting Trac Master 55W LED Wall Wash Flood Light, Universal 120V Trac Adapter, 2700K Color Temperature, 97 CRI, Phase Dimmable, Silver Finish
Juno T260L TEK 27K 97CRI PDIM SL Track Lighting Trac Master 55W LED Wall Wash Flood Light, Universal 120V Trac Adapter, 2700K Color Temperature, 97 CRI, Phase Dimmable, Silver Finish
Regular price
Price:
$494.23
Regular price
Price:
Sale price
$494.23
Unit price
per
MODEL: Juno-T260L-15020
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a Large Quantity?
Request a quote
description
PRODUCT DESCRIPTION
The T260L LED wall wash/flood trac fixtures deliver a powerful and uniform punch of light, utilizing less energy than a comparable CMH fixture and offering up to 4 times the rated life. They are capable of delivering up to 5978 powerful lumens, yielding an efficacy of up to 108 lumens per watt. Employing a custom hyperbolic reflector, they provide a uniform, wide beam of light. Their unique, narrow profile enables them to fit nicely with accent spotlights on the trac. Their optimized thermal management design yields a maintenance-free 50,000 hours service life at 70% lumen maintenance. Available in 2700K, 3000K, 3500K and 4000K color temperatures, the white-light T260L LED wall wash/flood trac fixtures are compatible with Juno Trac-Master and Trac-Lites trac.
PRODUCT SPECIFICATIONS
Housing
The T260L LED wall wash/flood trac fixtures deliver a powerful and uniform punch of light, utilizing less energy than a comparable CMH fixture and offering up to 4 times the rated life. They are capable of delivering up to 5978 powerful lumens, yielding an efficacy of up to 108 lumens per watt. Employing a custom hyperbolic reflector, they provide a uniform, wide beam of light. Their unique, narrow profile enables them to fit nicely with accent spotlights on the trac. Their optimized thermal management design yields a maintenance-free 50,000 hours service life at 70% lumen maintenance. Available in 2700K, 3000K, 3500K and 4000K color temperatures, the white-light T260L LED wall wash/flood trac fixtures are compatible with Juno Trac-Master and Trac-Lites trac.
PRODUCT SPECIFICATIONS
Housing
- Robust die cast aluminum construction
- Concealed wiring for a simplified, clean aesthetic
- Computer designed heat sink provides outstanding thermal management, yielding 70% average lumen maintenance at 50,000 hours of operation
- Available in white, black and silver painted finishes.
- Two high performance LEDs per fixture provide outstanding reliability, performance and color quality/consistency
- White phosphor high brightness LEDs in 2700K, 3000K, 3500K or 4000K color temperatures
- Exceptional 80 CRI minimum on standard product
- Optional high CRI versions offer 90 CRI or 97 CRI minimum.
- Cleverly assembled in a separate housing behind the LED housing to minimize overall fixture footprint
- Insulating air gap between drivers and LED light engine optimizes thermal operation
- Solid state electronic, Class 2 compliant
- Integral overcurrent and short circuit protection
- FCC Part 15 Class B rated.
- Standard 120V version is dimmable using high quality reverse phase ELV dimmers approved by Juno -- see T258LG2-T259LG2-T260L-DIM.
- Custom hyperbolic reflector creates a smooth, wide beam pattern and enables LEDs to be deeply regressed to minimize glare.
- 350 degree horizontal coverage
- 90 degree vertical aiming capability
- Concealed vertical aiming lock screw to secure fixture aiming.
- Universally compatible with both Trac-Master 1-circuit or 2-circuit trac, Trac-Lites trac, monopoints and special mountings
- Also UL Recognized for use on ConTech LT Series track
- Oversized trac adapter for greater mounting stability
- Copper alloy contacts provide precise spring action -- no arcing and will not take a set
- True, positive electrical ground
- On /off switch included
- Patented embossed polarity arrows on bottom of adapter
- Spring-loaded positive latch with embossed polarity arrows secures trac light to trac
- Two-position power contact provided for two-circuit application.
- Compatible with either Juno TEK or HTEK trac systems
- System specific and assembled to trac fixture
- Integrally polarized construction to prevent reverse installation -- only allows insertion in proper orientation
- Rotary circuit selector enables simple switching between circuits
- Integral on/off switch enables individual fixtures to be switched for servicing.
- Compatible with track systems based on GES type track, including Lithonia LT Commercial Track (not LTS type)
- System specific and assembled to trac fixture
- Consult factory for additional information.
- Compatible with track systems which use a H-type track adapter, including Lithonia LTS Decorative Track (not LT type)
- System specific and assembled to trac fixture
- Two-position power contact provided for two-circuit application
- Compatible with track systems which use a L-type track adapter
- System specific and assembled to trac fixture
- Two-position power contact provided for two-circuit application
- Consult factory for additional information.
- UL and cUL Listed
- ENERGY STAR certified
- Union made
- Assembled in U.S.A.
- 5-year limited warranty.
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
