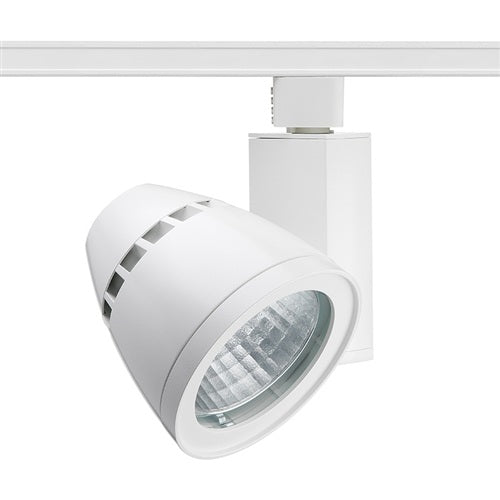

Home > Juno Lighting > Juno Track Lighting T262L G2 27K 80CRI OFF NFL WH Conix II 16W Generation 2 Non Dimmable 80 CRI LED Track Fixture 2700K, Narrow Flood, White Finish
Juno Track Lighting T262L G2 27K 80CRI OFF NFL WH Conix II 16W Generation 2 Non Dimmable 80 CRI LED Track Fixture 2700K, Narrow Flood, White Finish
Juno Track Lighting T262L G2 27K 80CRI OFF NFL WH Conix II 16W Generation 2 Non Dimmable 80 CRI LED Track Fixture 2700K, Narrow Flood, White Finish
Regular price
Price:
$229.68
Regular price
Price:
Sale price
$229.68
Unit price
per
MODEL: Juno-T262L-15189
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a Large Quantity?
Request a quote
description
PRODUCT DESCRIPTION
The sleek sculpted aesthetic of the Conix II LED fixtures is unparalleled in the industry. Their elegance is carried through the entire design for a fresh, contemporary appeal. The 16W Conix II LED fixtures have integral reflectors which enable uniform spot, flood or narrow flood distributions to be achieved. These lampholders have an integral, bayonet-mounted accessory holder that accommodates up to two accessories if desired in place of the clear glass lens provided. The 16W Conix II LED can deliver up to 1675 lumens, utilizing less than 1/3 of the energy of halogen equivalents and having a rated life of 50,000 hours. Available in 2700K, 3000K, 3500K and 4000K color temperatures, the white-light 16W Conix II LED is compatible with all Juno line voltage trac and standard adapter accessories.
PRODUCT SPECIFICATIONS
Construction
The sleek sculpted aesthetic of the Conix II LED fixtures is unparalleled in the industry. Their elegance is carried through the entire design for a fresh, contemporary appeal. The 16W Conix II LED fixtures have integral reflectors which enable uniform spot, flood or narrow flood distributions to be achieved. These lampholders have an integral, bayonet-mounted accessory holder that accommodates up to two accessories if desired in place of the clear glass lens provided. The 16W Conix II LED can deliver up to 1675 lumens, utilizing less than 1/3 of the energy of halogen equivalents and having a rated life of 50,000 hours. Available in 2700K, 3000K, 3500K and 4000K color temperatures, the white-light 16W Conix II LED is compatible with all Juno line voltage trac and standard adapter accessories.
PRODUCT SPECIFICATIONS
Construction
- All-metal housing and custom designed concealed heat sink provides outstanding thermal management, yielding 70% average lumen maintenance at 50,000 hours of operation
- Passively-cooled design -- no moving parts to break or wear-out
- Extruded aluminum vertically mounted LED driver housing
- Concealed fixture wiring for a clean aesthetic
- Fashionable, elegant design complements any decor
- Available in white, black and silver painted finishes.
- High performance LED array provides outstanding reliability, performance and color quality/consistency
- 2700K, 3000K, 3500K or 4000K white phosphor high performance LEDs
- Chromaticity range within a 3-step MacAdam Ellipse
- 80 CRI minimum on standard product
- Optional high CRI versions offer 90 CRI or 97 CRI minimum.
- Assembled in a side-mount vertical housing to minimize overall fixture footprint
- Insulating air gap between driver and LED light engine optimizes thermal operation
- Provides quiet operation with or without dimming
- 120V fixtures are dimmable using high quality reverse phase ELV dimmers approved by Juno -- see D1.3.39G2-DIM
- Solid state electronic, Class 2 compliant
- Integral overcurrent and short circuit protection
- Class B FCC Part 15 rated.
- Precision designed custom reflector provides either spot, narrow flood or flood beam distributions
- Faceted/dimpled reflector ensures a properly color-mixed beam
- Accessory reflectors available to convert from one beam distribution to another in the field.
- Universally compatible with both Trac-Master 1-circuit or 2-circuit trac, Trac-Lites trac, monopoints and special mountings
- Also UL Recognized for use on ConTech LT Series track
- Copper alloy contacts provide precise spring action -- no arcing and will not take a set
- True, positive electrical ground
- On /off switch included
- Patented embossed polarity arrows on bottom of adapter
- Spring-loaded positive latch with embossed polarity arrows secures trac light to trac
- Two-position power contact provided for two-circuit application.
- Compatible with either Juno TEK or HTEK trac systems
- System specific and assembled to trac fixture
- Integrally polarized construction to prevent reverse installation -- only allows insertion in proper orientation
- Rotary circuit selector enables simple switching between circuits
- Integral on/off switch enables individual fixtures to be switched for servicing.
- Compatible with track systems based on GES type track, including Lithonia LT Commercial Track (not LTS type)
- System specific and assembled to trac fixture
- Consult factory for additional information.
- Compatible with track systems which use a H-type track adapter, including Lithonia LTS Decorative Track (not LT type)
- System specific and assembled to trac fixture
- Two-position power contact provided for two-circuit application
- Consult factory for additional information.
- Compatible with track systems which use a L-type track adapter
- System specific and assembled to trac fixture
- Two-position power contact provided for two-circuit application
- Consult factory for additional information.
- Integral to fixture design
- Die cast aluminum construction
- Precision bayonet mounting
- Accommodates up to two accessories if desired.
- 360 degree horizontal coverage
- Greater than 90 degree vertical aiming capability.
- UL and C-UL Listed
- ENERGY STAR certified
- DesignLights Consortium Qualified
- Union made
- Assembled in U.S.A.
Warranty 5-year limited warranty.
