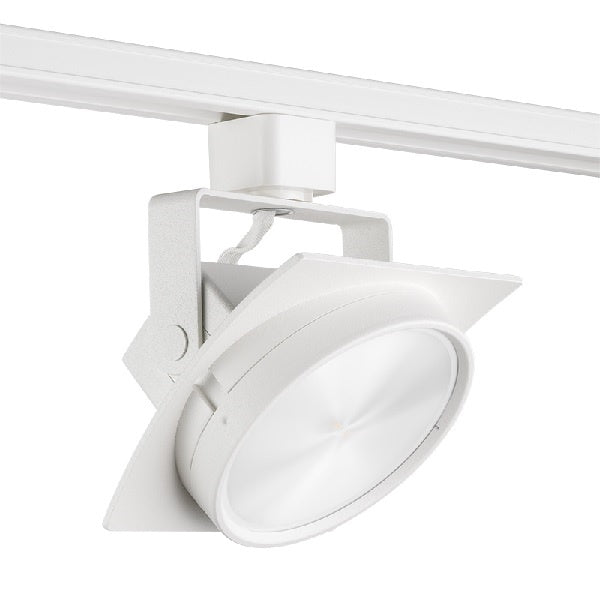

Juno T271L G2 30K 90CRI PDIM NFL WH Track Lighting Arc 9W Dimmable LED Track Fixture, 3000K, 90 CRI, Narrow Flood, White Finish

PRODUCT DESCRIPTION
The ultra-efficient optical system of the Arc LED trac fixture maximizes efficiency while minimizing fixture depth, yielding a unique and attractive aesthetic. It approximates the light output and distribution of 60-75W PAR30 halogen lamps, utilizing about 20% of the energy and having a rated life of 50,000 hours. Available in 2700K, 3000K, 3500K and 4000K color temperatures, the white-light Arc LED may be specified in 80 CRI versions, 90 CRI versions, or in optional SpectralWhite color/white enhancing versions which offer CRI of 90+, rendering colors richly and making whites appear naturally brilliant. The Arc LED is available with or without louver to optimize visual cutoff; there is also a louver accessory that can be added at a later time if desired.

PRODUCT SPECIFICATIONS
Construction

• Die cast aluminum housing provides outstanding thermal management of LED, yielding 70% average lumen maintenance at 50,000 hours of operation
• Fashionable, elegant design complements any decor
• Available in white, black and silver painted finishes.

LED

• High performance LED array provides outstanding reliability, performance and color quality/consistency
• 2700K, 3000K, 3500K or 4000K white phosphor high performance LEDs
• Chromaticity range within a 3-step MacAdam Ellipse
• 80 CRI minimum on standard product
• Optional high CRI versions offer 90 CRI typical
• Optional SpectralWhite color/white enhancing versions are available which make whites appear naturally brilliant and render colors more richly.

Driver

• Concealed behind LED light engine housing to minimize overall fixture footprint
• Insulating air gap between driver and LED light engine optimizes thermal operation
• Provides quiet operation with or without dimming
• Dimmable using high quality reverse phase electronic low voltage (ELV) dimmers -- see T271LG2-DIM
• Solid state electronic, Class 2 compliant
• Integral overcurrent and short circuit protection
• Designed for greater than 50,000 hour operating life
• FCC Certified to Part 15 Class B EMI standards.

Optics

• Proprietary, interchangeable polycarbonate lenses available in three factory-configured beam spreads
• One lens provided with fixture (as specified in catalog number)
• Accessory lenses available to enable simple beam changes in the field.

Lensholder

• Standard lensholder minimizes overall fixture depth
• Optional louver version retains lens and offers additional visual cutoff using a hexcell design
• Louvered lensholder also available as a field-installed accessory.

Juno Universal Trac Adapter

• Universally compatible with both Trac-Master 1-circuit or 2-circuit trac, Trac-Lites trac, monopoints and special mountings
• Also UL Recognized for use on ConTech LT Series track
• Copper alloy contacts provide precise spring action - no arcing and will not take a set
• True, positive electrical ground
• On/off switch included
• Patented embossed polarity arrows on bottom of adapter
• Springloaded positive latch with embossed polarity arrows secures trac light to trac
• Two-position power contact provided for two-circuit application.

Alternate TEK Trac Adapter

• Compatible with Juno TEK trac system
• System specific and assembled to trac fixture
• Integrally polarized construction to prevent reverse installation -- only allows insertion in proper orientation
• Rotary circuit selector enables simple switching between circuits
• Integral on/off switch enables individual fixtures to be switched for servicing.

Alternate GTYPE Trac Adapter

• Compatible with track systems based on GES type track, including Lithonia LT Commercial Track (not LTS type)
• System specific and assembled to trac fixture

Alternate HTYPE Trac Adapter

• Compatible with track systems which use a H-type track adapter, including Lithonia LTS Decorative Track (not LT type)
• System specific and assembled to trac fixture
• Two-position power contact provided for two-circuit application

Alternate LTYPE Trac Adapter

• Compatible with track systems which use a L-type track adapter
• System specific and assembled to trac fixture
• Two-position power contact provided for two-circuit application

Aiming

• 360 degree horizontal coverage
• 95 degree vertical aiming capability.

Labels

• UL and C-UL Listed
• ENERGY STAR certified and DesignLights Consortium Qualified (except THCL1 versions)
• Union made
• Assembled in U.S.A.

Warranty

• 5-year limited warranty.
