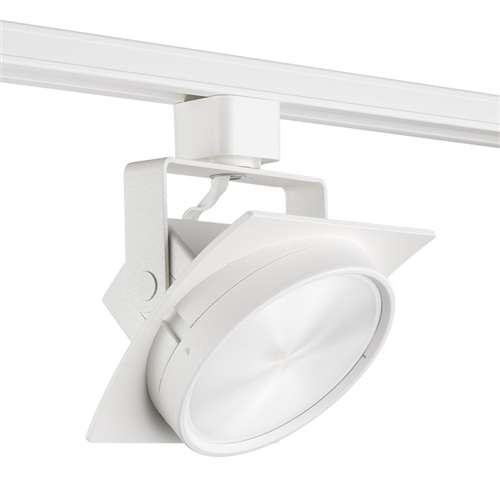

Juno T272L G2 30K 80CRI PDIM FL WH Track Lighting 15W Avant Garde Arc L Generation 2, 3000K Color Temperature, 80 CRI, Phase Dimmable, Flood, White Finish

Juno T272L G2 30K 80CRI PDIM FL WH Track Lighting 15W Avant Garde Arc L Generation 2, 3000K Color Temperature, 80 CRI, Phase Dimmable, Flood, White Finish

Price: $99.17
Price: $99.17

MODEL: Juno-T272L-G2-16511

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT DESCRIPTION
The ultra-efficient optical system of the Arc L LED trac fixture maximizes efficiency while minimizing fixture depth, yielding a unique and attractive aesthetic. It approximates the light output and distribution of 75W PAR30 halogen lamps, utilizing about 20% of the energy and having a rated life of 50,000 hours. Available in 2700K, 3000K, 3500K and 4000K color temperatures, the white-light Arc L LED may be specified in 80 CRI versions, 90 CRI versions, or in optional SpectralWhite color/white enhancing versions which offer CRI of 90+, rendering colors richly and making whites appear naturally brilliant. The Arc L LED is available with or without louver to optimize visual cutoff; there is also a louver accessory that can be added at a later time if desired.

PRODUCT SPECIFICATIONS
Construction
  • Die cast aluminum housing provides outstanding thermal management of LED, yielding 70% average lumen maintenance at 50,000 hours of operation
  • Fashionable, elegant design complements any decor
  • Available in white, black and silver painted finishes.
LED
  • High performance LED array provides outstanding reliability, performance and color quality/consistency
  • 2700K, 3000K, 3500K or 4000K white phosphor high performance LEDs
  • Chromaticity range within a 3-step MacAdam Ellipse
  • 80 CRI minimum on standard product
  • Optional high CRI versions offer 90 CRI typical
  • Optional SpectralWhite color/white enhancing versions are available which make whites appear naturally brilliant and render colors more richly.
Driver
  • Concealed behind LED light engine housing to minimize overall fixture footprint
  • Insulating air gap between driver and LED light engine optimizes thermal operation
  • Provides quiet operation with or without dimming
  • Dimmable using high quality, factory-approved reverse phase ELV dimmers - see T272LG2-DIM
  • Solid state electronic, Class 2 compliant
  • Integral overcurrent and short circuit protection
  • Designed for greater than 50,000 hour operating life
  • FCC Certified to Part 15 Class B EMI standards.
Optics
  • Proprietary, interchangeable polycarbonate lenses available in three factory-configured beam spreads
  • One lens provided with fixture (as specified in catalog number)
  • Accessory lenses available to enable simple beam changes in the field.
Lensholder
  • Standard lensholder minimizes overall fixture depth
  • Optional louver version retains lens and offers additional visual cutoff using a hexcell design
  • Louvered lensholder also available as a field-installed accessory.
Adapter
  • Copper alloy contacts provide precise spring action - no arcing and will not take a set
  • True, positive electrical ground
  • On/off switch included
  • Patented embossed polarity arrows on bottom of adapter
  • Spring-loaded positive latch with embossed polarity arrows secures trac fixture to trac
  • Two-position power contact provided for two-circuit application.
Juno Universal Trac Adapter
  • Compatible with Juno TEK trac system
  • System specific and assembled to trac fixture
  • Integrally polarized construction to prevent reverse installation - only allows insertion in proper orientation
  • Rotary circuit selector enables simple switching between circuits
  • Integral on/off switch enables individual fixtures to be switched for servicing.
Aiming
  • 360 degree horizontal coverage
  • 95 degree vertical aiming capability.
Labels
  • UL and C-UL Listed
  • ENERGY STAR certified (except THCL1 versions)
  • DesignLights Consortium Qualified.
Warranty 5-year limited warranty.
