Home > Juno Lighting > Juno Track Lighting T272L3KFWH Avant Garde Arc L 15W Dimmable LED Track Fixture, 85 CRI, 3000K, Flood, White Finish

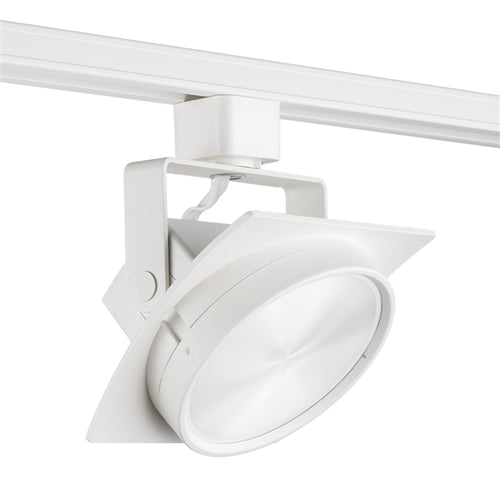

Juno Track Lighting T272L3KFWH Avant Garde Arc L 15W Dimmable LED Track Fixture, 85 CRI, 3000K, Flood, White Finish
Juno Track Lighting T272L3KFWH Avant Garde Arc L 15W Dimmable LED Track Fixture, 85 CRI, 3000K, Flood, White Finish
Regular price
Price:
$116.37
Regular price
Price:
Sale price
$116.37
Unit price
per
MODEL: Juno-T272L3KFWH
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
PRODUCT DESCRIPTION
The ultra-efficient optical system of the Arc L LED trac fixture maximizes efficiency while minimizing fixture depth, yielding a unique and attractive aesthetic. It approximates the light output and distribution of 75W PAR30 halogen lamps, utilizing about 20% of the energy and having a rated life of 50,000 hours. It is available in 2700K, 3000K, 3500K and 4000K color temperatures with a typical 85 CRI. Optional high CRI versions are available with a typical 92 CRI. The Arc L LED is available with or without louver to optimize visual cutoff; there is also a louver accessory that can be added at a later time if desired.
PRODUCT SPECIFICATIONS
Housing Compatibility
The ultra-efficient optical system of the Arc L LED trac fixture maximizes efficiency while minimizing fixture depth, yielding a unique and attractive aesthetic. It approximates the light output and distribution of 75W PAR30 halogen lamps, utilizing about 20% of the energy and having a rated life of 50,000 hours. It is available in 2700K, 3000K, 3500K and 4000K color temperatures with a typical 85 CRI. Optional high CRI versions are available with a typical 92 CRI. The Arc L LED is available with or without louver to optimize visual cutoff; there is also a louver accessory that can be added at a later time if desired.
PRODUCT SPECIFICATIONS
Housing Compatibility
- Trac-Master 120V One Circuit System
- Trac-Master 120V Two Circuit System
- Trac-Master 120V Tube System
- Trac-Master 120V Recessed System
- Trac-Lites One Circuit System
- Die cast aluminum housing provides outstanding thermal management of LED, yielding 70% average lumen maintenance at 50,000 hours of operation
- Fashionable, elegant design complements any decor
- Available in white, black and silver painted finishes.
- High performance LED array provides outstanding reliability, performance and color quality/consistency
- 2700K, 3000K, 3500K or 4000K white phosphor high performance LEDs
- Chromaticity range within a 3-step MacAdam Ellipse
- Exceptional 85 CRI typical on a standard product
- Optional high CRI versions offer 92 CRI typical.
- Concealed behind LED light engine housing to minimize overall fixture footprint
- Insulating air gap between driver and LED light engine optimizes thermal operation
- Provides quiet operation with or without dimming
- Dimmable using high quality reverse phase electronic low voltage (ELV) dimmers
- Solid state electronic, Class 2 compliant
- Integral overcurrent and short circuit protection
- Designed for greater than 50,000 hour operating life
- FCC Certified to Part 15 Class B EMI standards.
- Proprietary, interchangeable polycarbonate lenses available in three factory configured beam spreads
- One lens provided with fixture (as specified in catalog number)
- Accessory lenses available to enable simple beam changes in the field. Lensholder Standard lensholder minimizes overall fixture depth
- Optional louver version retains lens and offers additional visual cutoff using a hexcell design
- Louvered lensholder also available as a field-installed accessory.
- Copper alloy contacts provide precise spring action - no arcing and will not take a set
- True, positive electrical ground
- On/off switch included
- Patented embossed polarity arrows on bottom of adapter
- Spring-loaded positive latch with embossed polarity arrows secures trac fixture to trac
- “Pull-up” contact to up position for two-circuit application.
- 360° horizontal coverage
- 95° vertical aiming capability.
- UL and C-UL Listed
- ENERGY STAR Qualified (except HCL versions).
- Warranty period is 5 years from date of purchase
- Standard Juno Lighting Group product guarantee terms and conditions apply.
Product specifications subject to change without notice.
