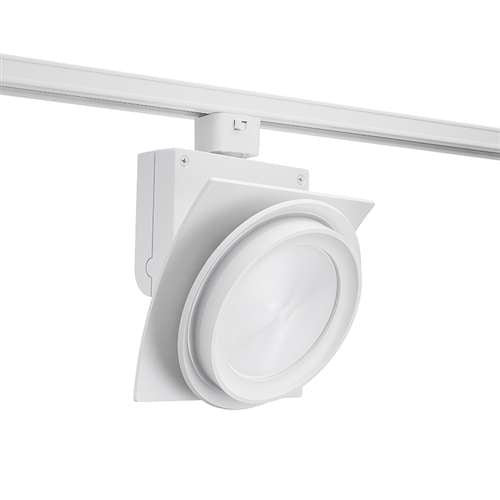

Juno Track Lighting T275L 35K 90CRI PDIM NFL WH Trac Master Arc XL 26W LED, 3500K Color Temperature, 90 CRI, Narrow Flood, No Louver, White Finish

Juno Track Lighting T275L 35K 90CRI PDIM NFL WH Trac Master Arc XL 26W LED, 3500K Color Temperature, 90 CRI, Narrow Flood, No Louver, White Finish

Price: $233.04
Price: $233.04

MODEL: Juno-T275L-11417

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT DESCRIPTION
The ultra-efficient optical system of the Arc XL LED trac fixture maximizes efficiency while minimizing fixture depth, yielding a unique and attractive aesthetic. It exceeds the light output of 39W CMH lamps, utilizing less energy than similar CMH fixtures and offering up to 4 times the rated life. It is capable of delivering up to 2281 powerful lumens, yielding an efficacy of up to 87 lumens per watt. It is available in 2700K, 3000K, 3500K and 4000K color temperatures with a minimum 80 CRI. Optional high CRI versions are available with a minimum 90 CRI. The Arc XL LED is available with or without louver to optimize visual cutoff; there is also a louver accessory that can be added at a later time if desired.
PRODUCT SPECIFICATIONS
Housing
  • Robust die cast aluminum construction
  • Concealed wiring for a simplified, clean aesthetic
  • Computer designed heat sink provides outstanding thermal management, yielding 70% average lumen maintenance at 50,000 hours of operation
  • Available in white, black and silver painted finishes.
LED
  • Single high performance LED array provides outstanding reliability, performance and color quality/consistency
  • Chromaticity range within a 3-step MacAdam Ellipse
  • White phosphor high brightness LEDs in 2700K, 3000K, 3500K or 4000K color temperatures
  • Exceptional 80 CRI minimum on a standard product
  • Optional high CRI versions offer 90 CRI minimum.
Driver
  • Cleverly assembled in a separate housing behind the LED housing to minimize overall fixture footprint
  • Insulating air gap between driver and LED light engine optimizes thermal operation
  • Solid state electronic, Class 2 compliant
  • Integral overcurrent and short circuit protection
  • FCC Part 15 Class B rated.
Dimming
  • Standard version is dimmable using high quality reverse phase electronic low voltage (ELV) dimmers approved by Juno - see T275L-DIM.
Optics
  • Proprietary, interchangeable polycarbonate lenses available in three factory-configured beam spreads
  • One lens provided with fixture (as specified in catalog number)
  • Accessory lenses available to enable simple beam changes in the field.
Aiming
  • 360 degree horizontal coverage
  • 90 degree vertical aiming capability
  • Concealed vertical aiming lock screw to secure fixture aiming.
Adapter
  • Copper alloy contacts provide precise spring action - no arcing and will not take a set
  • True, positive electrical ground
  • On/off switch included
  • Patented embossed polarity arrows on bottom of adapter
  • Spring-loaded positive latch with embossed polarity arrows secures trac fixture to trac
  • Two position power contact provided for two-circuit trac application.
Labels
  • UL and C-UL Listed
  • ENERGY STAR Qualified and DesignLights Consortium Qualified (except HCL versions).
Warranty
  • Warranty period is 5 years from date of purchase
  • Standard Juno Lighting Group product guarantee terms and conditions apply.
Product specifications subject to change without notice.
