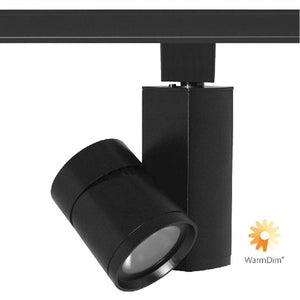

Juno Track Lighting T381L G2 WDIM HALR 90CRI PDIM FL BL 11W Vertical Cylinder LED, WarmDim 3000K-1800K, 90 CRI, Phase Dimmable, Flood Distribution, Black
Juno Track Lighting T381L G2 WDIM HALR 90CRI PDIM FL BL 11W Vertical Cylinder LED, WarmDim 3000K-1800K, 90 CRI, Phase Dimmable, Flood Distribution, Black
Regular price
Price:
$186.00
Regular price
Price:
Sale price
$186.00
Unit price
per
MODEL: Juno-T381L-G2-32643
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- All-metal housing and custom designed concealed heat sink provides outstanding thermal management, yielding 70% average lumen maintenance at 50,000 hours of operation
- Passively-cooled design -- no moving parts to break or wear-out
- Extruded aluminum vertically mounted LED driver housing
- Concealed fixture wiring for a clean aesthetic
- Fashionable, elegant design complements any decor
- Available in white, black and silver painted finishes.
- High performance LED array provides outstanding reliability, performance and color quality/consistency
- 2700K, 3000K, 3500K or 4000K white phosphor high performance LEDs
- Chromaticity range within a 3-step MacAdam Ellipse for static white versions, within a 2-step MacAdam Ellipse for WarmDim versions
- 80 CRI minimum on standard product
- Optional high CRI versions offer 90 CRI minimum, with an R9 value greater than 50
- Optional SpectralWhite versions are also available which make whites appear naturally brilliant and render colors more richly
- Optional WarmDim versions offer 90 CRI minimum and mimic halogen dimming (3000K - 1800K).
- Assembled in a side-mount vertical housing to minimize overall fixture footprint • Insulating air gap between driver and LED light engine optimizes thermal operation
- Provides quiet operation with or without dimming
- 120V static white fixtures are dimmable using high quality reverse phase ELV dimmers approved by Juno - see T381L-G2WD-DIM
- 120V WarmDim fixtures are dimmable using high quality, factory approved reverse phase ELV dimmers - see T381L-G2WD-DIM
- Solid state electronic, Class 2 compliant
- Integral overcurrent and short circuit protection
- Class B FCC Part 15 rated.
- Computer-designed custom TIR optic combines with a high-efficiency micro-optic film to create uniform spot, narrow flood, flood or wide flood beam spreads
- Accessory films available to enable beam changes in the field - consult factory
- Beam patterns can be altered as desired using a variety of available light control accessories.
- Universally compatible with both Trac-Master 1-circuit or 2-circuit track, Trac-Lites track, monopoints and special mountings
- Also UL Recognized for use on ConTech LT Series track
- Copper alloy contacts provide precise spring action – no arcing and will not take a set
- True, positive electrical ground
- On/off switch included
- Patented embossed polarity arrows on bottom of adapter
- Spring-loaded positive latch with embossed polarity arrows secures track fixture to track • Two-position power contact provided for two-circuit application.
- Integral to fixture design
- Die cast aluminum construction
- Precision bayonet mounting
- Accommodates one accessory if desired.
- 360° horizontal coverage
- Greater than 90° vertical aiming capability.
- UL and C-UL Listed
- ENERGY STAR certified
- 90CRI and 97CRI versions can be used to comply with California Title 24, Part 6 high efficacy LED light source requirements
- Union made
- Assembled in U.S.A.
- Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
- 5-year limited warranty.
