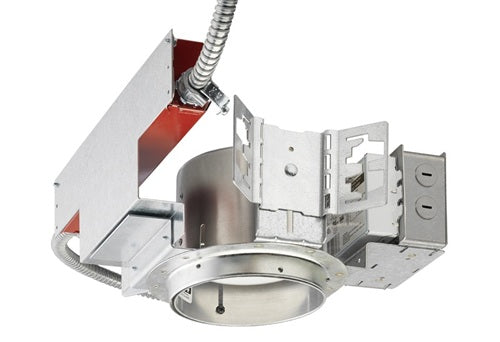

Juno Recessed Lighting TC20LED G4 14LM 30K 90CRI MVOLT EZ10 BR 5" TC-Rated LED Standard Type New Construction Housing 1400 Lumens, 3000K Color Temperature, 120-277V, eldoLED 0-10V, 10% Dim Dimmable Light with Emergency Battery Backup

• Dedicated LED new construction housing with integral light engine
• Shallow housing allows for fit in 2 x 6 construction
• TC housing design for use in noninsulated areas
• If installed where insulation is present, the insulation must be pulled back 3" from all sides of the TC housing
• LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
• 5 year limited warranty on LED components.

• Patent pending hyperbolic reflector available in clear Alzak, wheat haze, black Alzak and white
• Shadow free, knife edge design blends seamlessly into ceiling
• Installs with torsion springs.

• Universal voltage drivers that accommodate input voltage from 120-277 volts AC at 50/60Hz are available and dimmable with the use of most 0-10V dimmers
• Power factor > 0.9 at 120V input
• Optional Lutron Hi-Lume A-Series driver accommodates 120-277 volts AC at 50/60Hz
• Mounted between the j-box and housing for easy access and cool operation
• For a list of compatible dimmers, see JUNOTCLED-DIM.

• Battery factory assembled to housing with remote mounted test switch included
• Drives LED array for 90 minutes to meet Life Safety Code (NFPA-LSC), National Electrical Code (NEC) and UL requirements
• Provides 50% light output in emergency mode.

• ENERGY STAR Certified when used with select trims
• UL listed for U.S. and Canada through-branch wiring, damp locations
• Union made
• UL and cUL listed.

Download Wall Wash Trims PDF Specification
