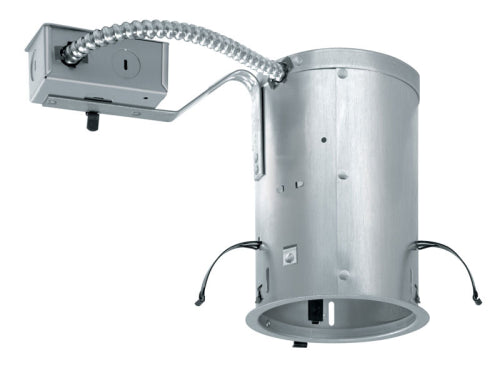

Juno Recessed Lighting TC20R (TC20R) 5" Line Voltage Remodel Housing

Non-IC rated remodel housing for applications where the back side of the ceiling is not accessible

• Designed to be installed in non-insulated areas, or where insulation is spaced at least 3" from housing

Features & Benefits

• 5" Remodel housing
• Medium base porcelain socket with nickel-plated copper screw shell
• Drop socket with spring to accommodate various trim installations
• Remodel springs accommodate up to a 1 1/8" ceiling thickness
• Housing is fully assembled for ease of installation
• Pre-wired junction box with (5) 1/2" knockouts with pryout slots, (4) non-metallic sheathed cable connectors, and ground wire
• Shadow-free, knife-edge trim design blends smoothly into the ceiling and allows architectural continuity with Aculux trims
• UL Listed, C-UL/CSA certified for through-branch wiring, maximum (4) #12 AWG branch circuit conductors (2 in, 2 out)
• Thermally protected against improper use of lamps or insulation
