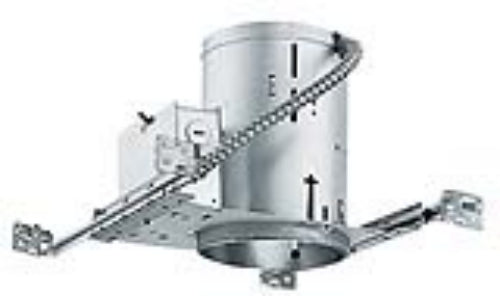

Juno Recessed Lighting TC20S (TC20 S) 5" Line Voltage Housing with Smaller Bar Hangers

Non-IC rated housing

• Designed to be installed in non-insulated areas, or where insulation is spaced at least 3" from housing

Features & Benefits

• 5" Housing
• Medium base porcelain socket with nickel-plated copper screw shell
• Drop socket with spring to accommodate various trim installations
• Housing is vertically adjustable to accommodate up to a 1" ceiling thickness
• Housing is fully assembled for ease of installation
• Real Nail 3 bar hangers: telescoping system with pre-installed removable nail for easy repositioning of housing in joist construction
• Integral T-bar mounting feature for secure installation in suspended ceilings
• Patented breakaway bars for tight joist spacing
• Bar hangers may be re-positioned 90°
• Curved foot facilitates alignment with joist bottom
• Quick-Loc slot and oversized set screw lock fixture in position
• Pre-wired junction box with (5) 1/2" and (1) 3/4" knockouts with pryout slots, (4) non-metallic sheathed cable connectors, and ground wire
• Shadow-free, knife-edge trim design blends smoothly into the ceiling and allows architectural continuity with Aculux trims
• UL Listed, C-UL/CSA certified for through-branch wiring, maximum (8) #12 AWG branch circuit conductors (4 in, 4 out)
• Thermally protected against improper use of lamps or insulation
