Home > Juno Lighting > Juno Recessed Lighting TC22LED G4 09LM 35K 90CRI MVOLT EZ10 6" New Construction TC-Rated LED Housing 900 Lumens, 3500K Color Temperature, Universal Driver 120-277V, eldoLED 0-10V, 10% Dim

  • Juno Recessed Lighting TC22LED G4 09LM 35K 90CRI MVOLT EZ10 6" New Construction TC-Rated LED Housing 900 Lumens, 3500K Color Temperature, Universal Driver 120-277V, eldoLED 0-10V, 10% Dim
  • Juno Recessed Lighting TC22LED G4 09LM 35K 90CRI MVOLT EZ10 6" New Construction TC-Rated LED Housing 900 Lumens, 3500K Color Temperature, Universal Driver 120-277V, eldoLED 0-10V, 10% Dim
1 2

Juno Recessed Lighting TC22LED G4 09LM 35K 90CRI MVOLT EZ10 6" New Construction TC-Rated LED Housing 900 Lumens, 3500K Color Temperature, Universal Driver 120-277V, eldoLED 0-10V, 10% Dim

Juno Recessed Lighting TC22LED G4 09LM 35K 90CRI MVOLT EZ10 6" New Construction TC-Rated LED Housing 900 Lumens, 3500K Color Temperature, Universal Driver 120-277V, eldoLED 0-10V, 10% Dim

Price: $165.61
Price: $165.61

MODEL: Juno-TC22LED-15786

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT DESCRIPTION

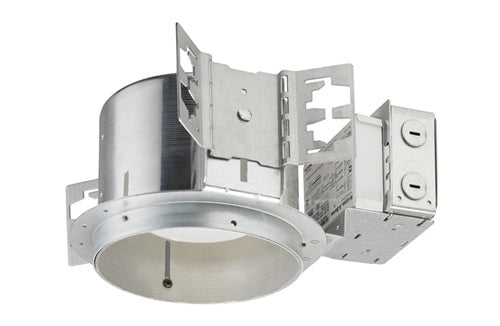

  • Dedicated LED new construction housing with integral light engine
  • Shallow housing allows for fit in 2 x 6 construction
  • TC housing design for use in non-insulated areas
  • If installed where insulation is present, the insulation must be pulled back 3? from all sides of the TC housing
  • LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
  • 5 year limited warranty on LED components
PRODUCT SPECIFICATIONS
LED Light Engine
  • LED array integrated to one piece high purity aluminum, thermally conductive housing provides uninterrupted heat transfer to ensure long life of the LED
  • Replaceable light engine mounts directly to housing and incorporates the latest generation, high lumen output LED array
  • LEDs are binned within a 3-Step MacAdam Ellipse exceeding ENERGY STAR requirements yielding superior fixture to fixture color uniformity
  • 2700K, 3000K, 3500K or 4000K color temperatures available
  • 90 CRI minimum.
Aesthetic Trim Selections
  • See PDF specifications for trim selections
LED Driver
  • Universal voltage drivers that accommodate input voltage from 120-277 volts AC at 50/60Hz are available and dimmable with the use of most 0-10V dimmers
  • Power factor > 0.9 at 120V input
  • Optional Lutron Hi-Lume A-Series driver accommodates 120-277 volts AC at 50/60Hz
  • Mounted between the j-box and housing for easy access and cool operation
  • For a list of compatible dimmers, see JUNOTCLED-DIM.
Emergency Battery Option
  • Battery factory assembled to housing with remote mounted test switch included
  • Drives LED array for 90 minutes to meet Life Safety Code (NFPA-LSC), National Electrical Code (NEC) and UL requirements
  • Provides 50% light output in emergency mode.
Life Rated for 50,000 hours at 70% lumen maintenance.
Labels
  • ENERGY STAR Certified when used with select trims
  • UL listed for U.S. and Canada through-branch wiring, damp locations
  • Union made
  • UL and cUL listed.


downloads

PDF Download Download Wall Wash Trims PDF Specification
